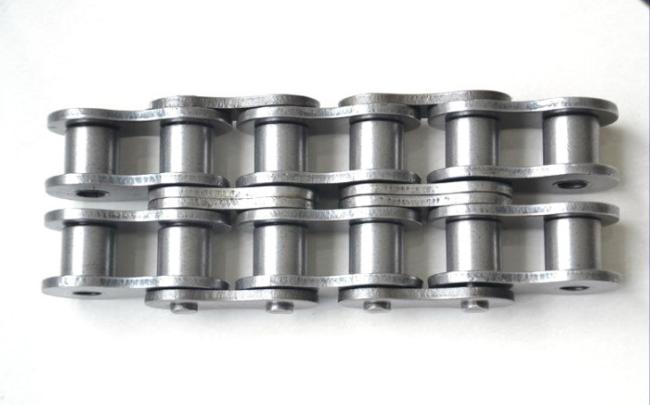

Triple Strand Roller Conveyor Chain Stainless Steel Short Pitch Custom Design
Wholesale Stainless Steel Triple Strand Short Pitch Precision Roller Chain
- Meets and exceeds ANSI B29.1 specifications
- Roller chain components are shot peened for greater fatigue resistance
- Heat treated components for increased durability, longevity and wear resistance
- Chain is pre-loaded (Pre-stretched) to eliminate initial stretching.
- Chain components are lubricated before assembly, then dipped in a hot oil bath after assembly
|
Chain N0. |
Pitch |
Roller diameter
|
Width between inner plates |
Pin diameter |
Pin length
|
Inner plate depth |
Plate thickness
|
Breaking Load |
|
| P |
d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
t/T max |
Q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN | |
| *25SS | 6.350 | 3.30 | 3.18 | 2.31 | 7.9 | 8.4 | 6.00 | 0.8 | 2.5/568 |
| *35SS | 9.525 | 5.08 | 4.77 | 3.58 | 12.4 | 13.17 | 9.00 | 1.30 | 5.5/1250 |
| 40SS | 12.700 | 7.95 | 7.85 | 3.96 | 16.6 | 17.8 | 12.00 | 1.50 | 9.6/2182 |
| 41SS | 12.700 | 7.77 | 6.25 | 3.58 | 13.75 | 15.0 | 9.91 | 1.30 | 6.0/1360 |
| 50SS | 15.875 | 10.16 | 9.40 | 5.08 | 20.7 | 22.2 | 15.09 | 2.03 | 15.2/3455 |
| 60SS | 19.050 | 11.91 | 12.57 | 5.94 | 25.9 | 27.7 | 18.00 | 2.42 | 21.7/4932 |
| 80SS | 25.400 | 15.88 | 15.75 | 7.92 | 32.7 | 35.0 | 24.00 | 3.25 | 38.9/8841 |
| 100SS | 31.750 | 19.05 | 18.90 | 9.53 | 40.4 | 44.7 | 30.00 | 4.00 | 60.0/13636 |
| 120SS | 38.100 | 22.23 | 25.22 | 11.10 | 50.3 | 54.3 | 35.70 | 4.80 | 72.5/16477 |
| 140SS | 44.450 | 25.40 | 25.22 | 12.70 | 54.4 | 59.0 | 41.0 | 5.60 | 94.0/21363 |
| 04BSS | 6.000 | 4.00 | 2.80 | 1.85 | 6.80 | 7.8 | 5.00 | 0.60 | 2.0/455 |
| 05BSS | 8.000 | 5.00 | 3.00 | 2.31 | 8.20 | 8.9 | 7.10 | 0.80 | 3.5/795 |
| #06BSS | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.1 | 8.20 | 1.30 | 6.2/1409 |
| 08BSS | 12.700 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.80 | 1.0 | 12.0/2727 |
| 10BSS | 15.875 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.70 | 1.70 | 14.5/3295 |
| 12BSS | 19.050 | 12.07 | 11.68 | 5.72 | 22.5 | 24.2 | 16.00 | 1.85 | 18.5/4205 |
| 16BSS | 25.400 | 15.88 | 17.02 | 8.28 | 36.1 | 37.4 | 21.00 | 4.15/3.1 | 40.0/9091 |
| 20BSS | 31.750 | 19.05 | 19.56 | 10.19 | 41.3 | 45.0 | 26.40 | 4.5/3..5 | 59.0/13409 |
| 24BSS | 38.100 | 25.40 | 25.40 | 14.63 | 53.4 | 57.8 | 33.20 | 6.0/4.8 | 104.0/25454 |
| 32BSS | 50.800 | 29.21 | 30.99 | 17.81 | 66.0 | 71.0 | 42.00 | 7.0/6.0 | 150.0/34090 |
Stainless steel properties
|
Grade
|
Composition(%)
|
Temperature
resisting
|
Specifications
|
|||||
|
C
|
Si
|
Mn
|
Ni
|
Cr
|
Mo
|
|||
|
1Cr13
|
≤0.15
|
≤0.6
|
≤0.6
|
-
|
12-14
|
-
|
650℃
|
Normal conveyor use
|
|
1Cr17
|
≤0.15
|
≤0.6
|
≤0.6
|
-
|
12-18
|
-
|
650℃
|
Normal conveyor use
|
|
304M
|
≤0.06
|
≤1.0
|
≤0.6
|
8.9-10
|
18-20
|
-
|
920℃
|
Normal conveyor use
|
|
304L
|
≤0.03
|
≤1.0
|
≤0.6
|
9-13
|
18-20
|
-
|
920℃
|
intercrystalline corrosion
|
|
316
|
≤0.08
|
≤1.0
|
≤0.6
|
10-14
|
16-18
|
2-3
|
920℃
|
Anti corrosion |
|
316L
|
≤0.03
|
≤1.0
|
≤0.6
|
12-15
|
16-18
|
2-3
|
920℃
|
intercrystalline corrosion |
|
309S
|
≤0.08
|
≤1.0
|
≤0.6
|
12-15
|
22-14
|
-
|
1000℃
|
Continuous high temperature |
| 310s |
≤0.08
|
≤1.5
|
≤0.6
|
19-22
|
24-26
|
-
|
1100℃
|
High temperature & heavy hit resisting
|
|
314
|
≤0.25
|
1.5-3.0
|
≤0.6
|
19-22
|
23-26
|
-
|
1200℃
|
Antioxidant plus all 310S
|
|
Cr20Ni80
|
≤0.15
|
0.4-1.3
|
≤0.6
|
72-78
|
20-23
|
-
|
1200℃
|
Antioxidant & high temperature resisting |
Usual Tips
| Item name: | Roller Conveyor Parts Roller Chain |
| Standard: | ANSI B29.1 M2002 (DIN 3183) and ISO 606. |
| Material: | 40Mn, 45Mn,60Mn |
| Chain Type: | Single strand roller chain 16B with plastic attachment |
| MOQ: | Small order can be accepted |
| Delivery Time: | Sample: Within 2-3days Production:15-20 days |
| Port of delivery: | shenzhen/yantian |
| Payment Terms: | T/T,L/C, Paypal ,Western Union, |
| Shipment: | A. Send by Express – Swift delivery ( 4-7 working days) and we can get you a special price Shippment:UPS,TNT
,DHL,Chian post,EMS,FedEx ,etc. |
| B. Send by Air: Arrive at destination Airport. | |
|
C. Ship by Sea: Low shipping cost and slow delivery (15-30 days depends). Suitable for large quantity and non-urgent delivery. |
|
| Packing | Carton or wooden case, as your requirement |
| Supply Ability | 200,000 pcs per month |
