STR Straight Belts Running Stainless Steel Rod Network Conveyor Belt Resistant Slip

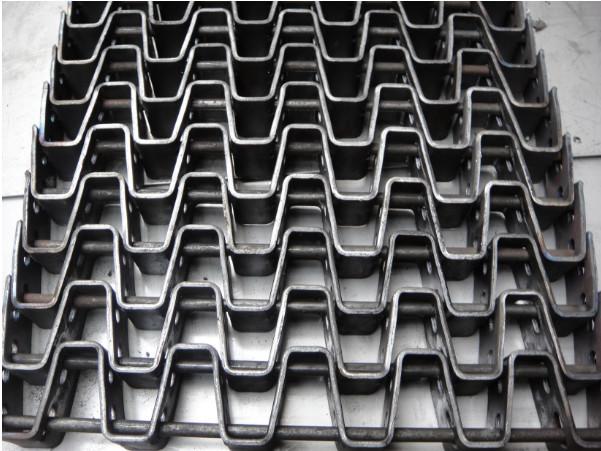

    The STR belt consists of metal strips bended in a honeycomb shape, which are assembled to one another by means of straight cross rods. The ends of these cross rods are secured by means of welded rings (STRG) or by hooking the cross rods, in a U-shape, back into the belt (STRU).
The belt, in contradiction to belt type 1400: STR, consists of a strip belt which can’t rotate in the radius.

  Resistant High Temperature Treatment Detail

• Drive on the basis of sprockets wheels, no chance on belt slip
• Very straight belt run due to the positioned drive elements
• Very heavy loads are possible
• Recommended support: strips in herringbone motive
• Relatively big openings and thereby also a large passing range
• Simple to clean since no residue can accumulate in the spirals
• Uniform heat transfer
• In comparison with other belt types, a long life-span can be realized. It is possible to extend it by using eccentric placed cross rods
• Tools are inflexible; not every combination of longitunal pitch/mesh/ eye link wire/cross rod wire is possible

We will provide professional service for you , welcome your consultation for detail !



Detail of high temperature mesh conveyor belts :



Material	SUS304/316 food grade stainless steel
Standrad	DIN, JIS
Type	conveyor belt
Pitch	30mm
Thickness	2.0mm
Width	300-2000mm
Length	20-100m
Application industry	mainly used in heating/tempering equipments.
Introduction	conveyor belt is made by special spiral coil winding, can be reinforced by rod and chain for high load purpose.
Features	Acid-resisting, alkali-resisting, high temperature resisting, strong tension and good abrasion performance It also has advantage of stable, fine and high precision filtering performance. Long service life



Avdantage mesh conveyor belts :

width:150~5500mm speed:0.15~0.50m/min Temperature:-40°C~1050°C

Edage form: bay-side, duntou, weld etc.

1. Convenient and flexible use

2. Good transparency

3. Anti-high temperature and anti-corrosion

4. Steady performance.

5. Surface smooth, uniform through-hole

6. Standard chain drive, running smoothly, no deviation phenomenon

7. Load capacity and strong tensile

8. Easy to clean, easy to maintain







The product more detail
