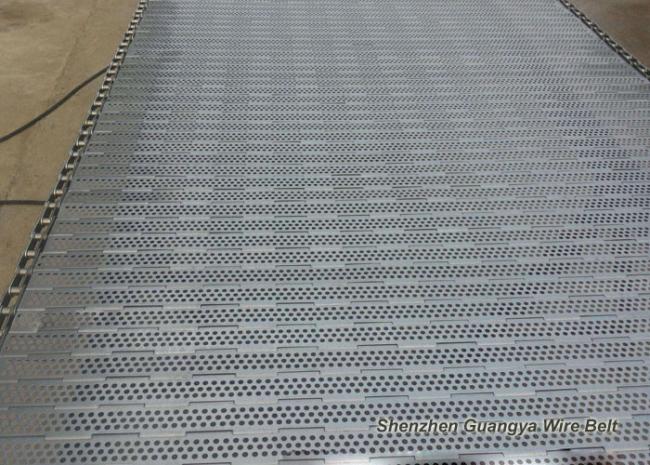

Stainless Steel Plate Conveyor Belt Tunnel Oven Use With Roller Chain
Stainless Steel Plate Conveyor Belt for Tunnel Oven, Drying, Washing
1: canning and food preparation .
2: baking and freezing food .
3: parts cleaning .
4: parting painting and drying .
Guantee tracking :every baking band is pre-tracked and electroncally, charted at the factory to ensure that receive a staight running precision woven wire mesh belt .
consistent heat transfer:the flattened wire surface of the baking band 's tightly wowen wire mesh offers excellent gas relief with good product support for all .
the belt density of the baking band matintains even heating for uniform heat transfer to your products across the width of the conveyor belt .
The Feature :
1. Positive Stainless Steel wire mesh belt ensures stable running.
2. The rotation diameter of stainless steel conveyor wire mesh belt is small, so that smooth products transfer is ensured.
3. This kind of conveyor wire mesh belt can be washed easily.
4. The opening air of mesh belt, high air permeablity and hydration are ensured.
5. Reinforcement plate links are made for heavy load and high speed
Plate link conveyor belt properties
| Item | Pitch(mm) | Rod diameter(mm) | Plate thickness(mm) |
|---|---|---|---|
| GYL-01 | 25.40 | 5.00 | 1.00 |
| GYL-02 | 25.40 | 6.00 | 1.00 |
| GYL-03 | 25.40 | 6.00 | 1.50 |
| GYL-04 | 31.75 | 6.00 | 1.00 |
| GYL-05 | 31.75 | 6.00 | 1.50 |
| GYL-06 | 31.75 | 8.00 | 2.00 |
| GYL-07 | 38.10 | 6.00 | 1.00 |
| GYL-08 | 38.10 | 6.00 | 1.50 |
| GYL-09 | 38.10 | 8.00 | 1.00 |
| GYL-10 | 38.10 | 8.00 | 1.50 |
| GYL-11 | 38.10 | 8.00 | 2.00 |
| GYL-12 | 50.80 | 8.00 | 1.00 |
| GYL-13 | 50.80 | 8.00 | 1.50 |
| GYL-14 | 50.80 | 10.00 | 2.00 |
| GYL-15 | 50.80 | 10.00 | 3.00 |
| GYL-16 | 63.50 | 10.00 | 1.50 |
| GYL-17 | 63.50 | 10.00 | 2.00 |
| GYL-18 | 63.50 | 10.00 | 3.00 |
| GYL-19 | 80.00 | 8.00 | 1.50 |
| GYL-20 | 80.00 | 8.00 | 2.00 |
| GYL-21 | 80.00 | 10.00 | 2.00 |
| GYL-22 | 80.00 | 10.00 | 2.50 |
| GYL-23 | 100.00 | 10.00 | 1.50 |
| GYL-24 | 100.00 | 10.00 | 2.00 |
| GYL-25 | 100.00 | 10.00 | 2.00 |
| GYL-26 | 100.00 | 14.00 | 2.00 |
| GYL-27 | 100.00 | 14.00 | 3.00 |
| GYL-28 | 101.60 | 10.00 | 4.00 |
| GYL-29 | 101.60 | 14.00 | 4.00 |
| GYL-30 | 125.00 | 20.00 | 3.00 |
Compatible sprocket properties
| Edge Chain Type | Belt Style | Chain Pitch (mm) | Number of Teeth | ||
| 8 | 10 | 12 | |||
| 1361 kgf loose link & roller chain (25.4mm chain roller diameter) |
Light & Medium Duty Plate Link Belt | 38.1 | 99.57 | ᶲ | 147.22 |
| 50.8 | 132.74 | ᶲ | 196.27 | ||
| 76.2 | 199.11 | ᶲ | 294.41 | ||
| 101.6 | 265.51 | ᶲ | 392.56 | ||
| 152.4ᶲ | 398.25 | ᶲ | 588.82 | ||
| 2042 kgf standard conveyor chain (25.4mm chain roller diameter) |
Light Duty Plate Link Belt |
38.1 | 99.57 | ᶲ | 147.22 |
| 50.8 | 132.74 | ᶲ | 196.27 | ||
| 76.2 | 199.11 | ᶲ | 294.41 | ||
| 2722 kgf standard conveyor chain (31.75mm chain roller diameter) |
Medium Duty Plate Link Belt |
50.8 | 132.74 | ᶲ | 196.27 |
| 76.2 | 199.11 | 246.58 | 294.41 | ||
| 101.6 | 265.51 | 328.78 | 392.56 | ||
| 152.4 | 398.25 | ᶲ | 588.82 | ||
Plate chain conveyor belt Application
- Cleaning, conveying machinery conveyor.
- Ultrasonic cleaning conveyor.
- Food processing industry, dehydrated vegetables, frozen food iqf machine pretreatment mesh belt, chain network.
Conveyor Belt FAQ
Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total quantity. Each belt is custom made based customer side exact parameters.
Q: How long is your company in business?
A: We shenzhen guangya wire belt company started business in 2003 and only dedicated to stainless steel wire belt production.
Q: How do I order?
A: If you can visit our company, we can fix all technical details quickly by live discussion. We can also send you drawing so you can specify needed configuration. Once the wire belt structure is confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed technical design.
