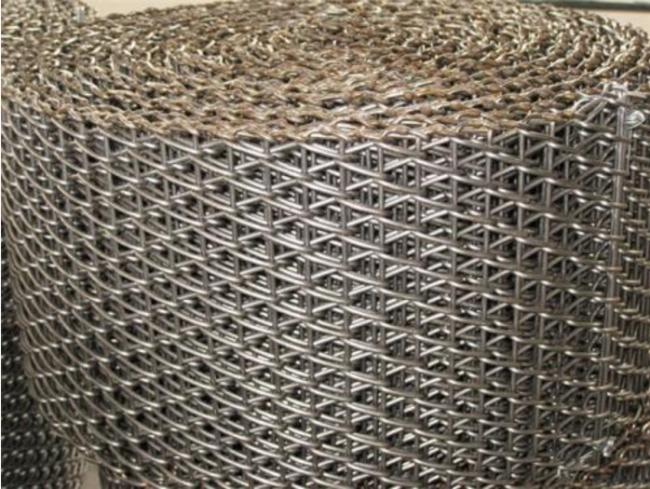

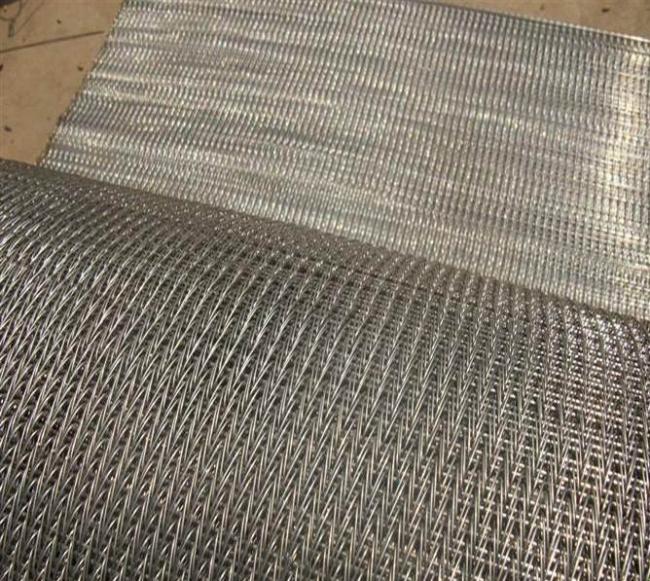

Stainless Steel Mesh Food Conveyor Belt Spiral Mesh For Bread Custom Made
Chain Drive Dishwasher Mesh Belt for Restaurant, Heavy Load Capacity & Durable
spiral mesh belt are used for freezering food processing , such as bread , ice cream , shrimp.
1: the sprocket drive ensures postive and stable running
2: turing rate :1.7-2.2
3: easy washing is ensured .
4: because of large open area , high air permeability and dehydration capacity are ensured .
5: 120-1500mm width , 5mm rod , 1.5mm wire .pitch 25.4mm,27.43,31.75mm
6: chain is driven by sprocket, meandering does not occur.
7: various types of chain can be applied by adjusting belt pitch .
Belt properties(custom design support)
- Belt width: 150~5500mm
- Mesh size: 2mm-50mm
- Rod diameter: 5mm-14mm
- Chain pitch: 25.4mm,31.75mm,38.1mm,50.8mm.
- Working temperature: -40℃~110℃
- Edge type: welding, sanding etc
Advantages:
- Anti corrision/friction and friendly to different temperatures
- High quality plastic to deal with physical changes for long life cycle
- Good design, tight structure, ease of installation and reliable operation
Conveyor belt gallery
- balance weave wire mesh belt
- chain conveyor belt ,spiral conveyor belt
- belt with side guard, food baking mesh belt
- quick freezing mesh belt
- double balanced belt
- spiral wire mesh belt with chain
- herringbone mesh belt
- horseshoe mesh belt.
- flat Wire Belt, Flat Flex Belt in required sizes.
Chain Link Belt Properties
| Material | SUS304/310/314, other grade stainless steel wire can be applied upon requests. |
| Standrad | DIN, JIS |
| Type | stainless steel wire belt |
| Mesh Size | minimum 5*8mm, max 35*50mm |
| Thickness | 1.0-10.0mm |
| Width | 300-2000mm |
| Length | 20-100m |
| Application industry | mainly used in printing/cleaning/heating/baking machinery units. |
| Introduction | Stainless steel chain link belt is made by spiral coil through a special mold pressing, reinforced by rod and chain for high load purpose. |
| Features |
1 Acid-resisting, alkali-resisting, high temperature resisting, strong tension and good abrasion performance 2 It also has advantage of stable, fine and high precision filtering performance. 3 Long service life |
Chain conveyor belt Application
- Cleaning, conveying machinery conveyor.
- Ultrasonic cleaning conveyor.
- Food processing industry, dehydrated vegetables, frozen food iqf machine pretreatment mesh belt, chain network.
- instant noodles industry
- all kinds of frozen food, dehydrated vegetables, assembly line equipment
- glass annealing furnace mesh belt
- manufacturing all kinds of mesh belt conveyor.
Wire Conveyor Belt FAQ
Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total quantity. Each belt is custom made based customer side exact parameters.
Q: can i order a sample?
A: of course, for the existing model we have, our factory would like to offer one or two pieces sample to customer and the air-freight charge shall be paid by customers; for customized model making shall be consulted.
Q: can we use our own shipping agent?
A:of couse you could.
Q: can you accept OEM service?
A: yes,OEM is acceptable, pls send email to us for more detail.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed technical design.
