Best Price Balance Spiral Metal Conveyor Mash Belts Surface Custom Design
Best Price Balance Spiral Metal Conveyor Mash Belts Surface Custom Design
1. Brief Introduction
Our company has more than 20 years experience , with high quality stainless steel raw material and advanced production technology,has established a long coopration relationship with many countries.Welcome to your join.
We’ve supplied over 500 customers in more than 100 industries worldwide. And we’re ready to serve you.Wire-Mesh Products carefully chooses and recommends the most cost-effective solution to satisfy our customers’ specific needs.
1) Material
Stainless steel welded wire mesh belt is usually used 201,304,316,316L,310,310S etc.
2) Types
Balance wire mesh belt, spiral link belt, wire link belt, chain driven conveyor belt, ey link conbeyor belt, honeycomb conbeyor belt.
2. Balance Spiral Metal Conveyor Mash Belts benenfits:
- Has resistance to acid,alkali and low and high tempertures.
- Has good convying function,break resistance as well as antioxidation.
- With professional design and compact form,it is very easy to install steadily run without deflection.
3. Application of Balance Spiral Metal Conveyor Mash Belts For Roasting Food Stuff
- Frozen food machinery
- Canned food machinery
- Marine food machinery
- Powder metallurgy machinery
- Continuous drying machine
- Heat treatment machines
- Glass machinery
- Chemical machinery
- General conveying machinery
- Special conveying machinery
4.Stainless steel general properties table
| Grade | Composition(%) |
Temperature
resisting
|
Specifications | |||||
| C | Si | Mn | Ni | Cr | Mo | |||
| 1Cr13 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-14 | - | 650℃ | Normal conveyor use |
| 1Cr17 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-18 | - | 650℃ | Normal conveyor use |
| 304M | ≤0.06 | ≤1.0 | ≤0.6 | 8.9-10 | 18-20 | - | 920℃ | Normal conveyor use |
| 304L | ≤0.03 | ≤1.0 | ≤0.6 | 9-13 | 18-20 | - | 920℃ | intercrystalline corrosion |
| 316 | ≤0.08 | ≤1.0 | ≤0.6 | 10-14 | 16-18 | 2-3 | 920℃ | Anti corrosion |
| 316L | ≤0.03 | ≤1.0 | ≤0.6 | 12-15 | 16-18 | 2-3 | 920℃ | intercrystalline corrosion |
| 309S | ≤0.08 | ≤1.0 | ≤0.6 | 12-15 | 22-14 | - | 1000℃ | Continuous high temperature |
| 310s | ≤0.08 | ≤1.5 | ≤0.6 | 19-22 | 24-26 | - | 1100℃ | High temperature & heavy hit resisting |
| 314 | ≤0.25 | 1.5-3.0 | ≤0.6 | 19-22 | 23-26 | - | 1200℃ | Antioxidant plus all 310S |
| Cr20Ni80 | ≤0.15 | 0.4-1.3 | ≤0.6 | 72-78 | 20-23 | - | 1200℃ | Antioxidant & high temperature resisting |
Avdantage mesh conveyor belts :
width:150~5500mm speed:0.15~0.50m/min Temperature:-40°C~1050°C
Edage form: bay-side, duntou, weld etc.
1. Convenient and flexible use
2. Good transparency
3. Anti-high temperature and anti-corrosion
4. Steady performance.
5. Surface smooth, uniform through-hole
6. Standard chain drive, running smoothly, no deviation phenomenon
7. Load capacity and strong tensile
8. Easy to clean, easy to maintain
5. Why Us
1. Strict QC System
We have been engaged in production of shale shaker screen fore more than 15 years, we have strict quality control system and we have applied the patent of the screen, we can assure the best quality of every sheet of screen we produced.
2. Direct Manufacturer
We’re one direct manufacturer, which is very close to Tianjin Port. We are the earliest manufacturer of Shale Shaker Screen which is founded in 1989.
3. Short Production
Time We can complete production within 10 days and we usually prepare the material for every kind of our product. So we can deliver the goods as soon as possible.
4. In Return
When your annual purchase amount is over 10000 sheet, we’ll give you 2%-3% of the amount in return.
5. Best After-sale Service
We have professional after-sales service team, which consist of five people, and each has more than three years experience. If you have any questions after you receive the cargo, you can call us or send email all day.
6. Supply free samples
As we have above advantages, we can supply you free samples for your trial to test if you have great intention to order

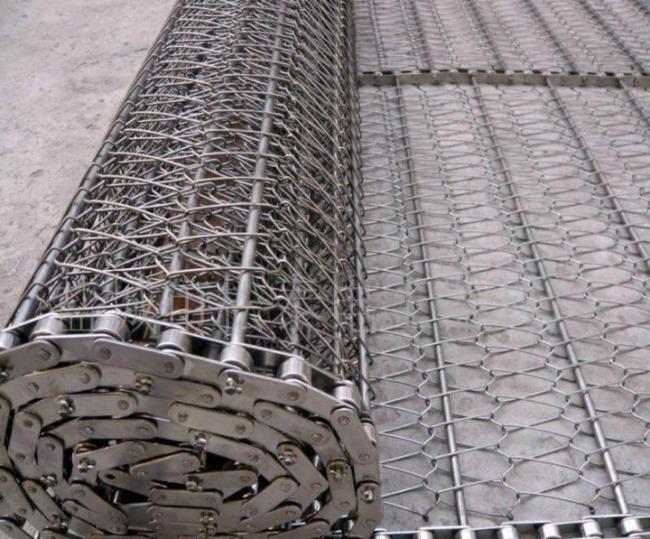

6.Product Display:
