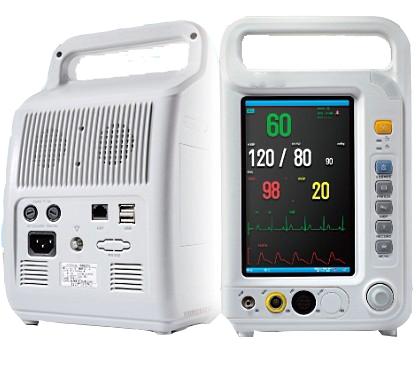

Vital Signs Patient Monitor Machine 6 Parameters for ICU / CCU with 7 inch Color Multi Display
CE Vital Signs Patient Monitor 6 Parameters ICU/CCU 7 inch Color Multi Display
HF-8000A multi-parameter patient monitor is our newest product. The display is 7 inch high resolution color TFT. It is equipped with 4 parameters including ECG, NIBP, SpO2, RESP. These four parameters can be flexible. You can choose different combinations as you need. This monitor is built-in rechargeable lithium battery. The working capacity is 5 hours. IBP is optional.
Product Detail
|
NIBP |
Method:Oscillometry Modes:Manual/Auto/Comtinuous Auto measure time:Adjustable Measurement range:10-270mmHg |
|
ECG |
Lead mode: 3-lead or 5-lead Lead selection: I;II;III,avR;avF;V Heart rate range: Adult:15-300bpm; Pediatric/Neonatal:15-300bpm ECG waveform: 2 channals Accuracy: ±1 bpm or ±1%,which is greater S-T segment detection; measurement range: 2.0mv~2.0mv Alarm:Yes,audible and visual alarm,alarm events review |
|
SPO2 |
Measurement range:0-100% Accuracy:70-100%,±2%,0-69%,upspecified Auto measure time:Adjustable |
|
Pulse Rate |
Range:20-254bpm Accuracy: ±3bpm |
|
Respiration |
Method:RA-LL impedance Range: Adult:0-120rpm;pediatric/neonatal:0-150rpm Apnca alarm:Yes |
|
Temperature |
Range:0-500 Accuracy: ± 0.10 Channal:Dual-channel |
|
Main unit |
ECG cable Spo2 probe TEM Probe NIBP Tube Adult cuff Power cable Battery User manual ECG Electrodes |
Features
♦ 4 Standard parameters: ECG, NIBP, SpO2, RESP.
♦ 7 inch high resolution color TFT LCD display.
♦ Real time S-T segment analysis, pace-maker detection.
♦ Indication of Incorrect manipulation and malfunction analysis.
♦ Patient info input management function
♦ Multi-lead ECG waveforms display in phase.
♦ Large volume of tabular and graphic trends information storage and easy to recall.
♦ Capture dynamic waveforms.
♦ Efficient resistance to interference of defibrillator and HF knife.
♦ UP to 4 hours working capacity of built-in rechargeable lithium battery.
♦ Unique accessory management cabinet.
♦ Networking capacity.
♦ Option: IBP
Package&Delivery
|
Unit Type |
piece |
|
Package Weight |
5.000kg (11.02lb.) |
|
Package Size |
40cm x 30cm x 20cm (15.75in x 11.81in x 7.87in) |
|
Delivery Time |
5~7 workdays after the payment |
