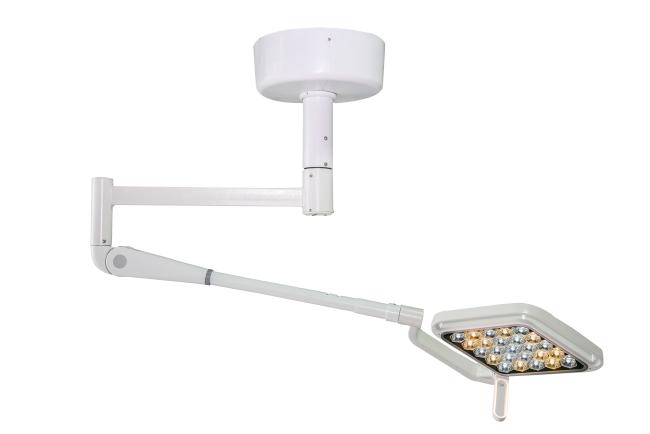

Examination Portable Surgical Lights Wall Mounted For Dental / Veterinarian Clinic
Wall Mounted Led Surgery Lights Dental Examination Lamp for Clinic and Veterinarian with Two Color Temperature
Product Advantages
1. Efficient
Low power consumption and durable LEDs minimize the impact on our precious resources.
2. Durable
50,000 LED life expectancy delivers tremendous product reliability and investment protection.
3. Precise
Uniform, homogeneous lighting in surface and deep cavity procedures thanks to shadow control.
4. Simple
Ergonomic, sterile operating concept allows simple and flexible controlling functions by surgical team.
What is the Specifications of our HF-L25 LED Examination Light?
| Main Technical Data | Model HF-L25W |
| Type | LED Cold Light Operating Lamp,minor Surgery Lamp |
| Illuminance(Lux) | >=80000lux |
| Colour temperature(k) | 4000/5000±200k |
| Colour reduction index(Ra) | 97 |
| Total irradiance (W/m2) | 171 |
| Size of light field (mm) | 160-220 |
| Lamp head diameter(mm) | 300mm |
| Rated power of bulb(V/W) | 24/25 |
| Service life (H) | 50000h |
| Power supply voltage(V) | AC110-240V |
| Rated power (W) | 25 |
| Bulb | led light source |
| Warranty | 2year |
| Delivery time | 3-5days |
| Ceiling | 2600mm |
Malfunction Analysis and Resolutions
| Malfunction | Reason | Resolution | Remarks |
| Lamp off, but the indictor light is on. |
① Bulb damaged; ② Transform damaged; ③ Fuse damaged. |
Replace the bulb; Ask for the profession; Shutdown the power, replace the fuse. |
Fuse: F1.5AL-250V |
Package List
| Model | Product | Quantity | |
| HF-L25(LED) | Cold Light Operating Lamp |
Lamp head Spring arm Revolving arm Spare fuse Instruction booklet Qualified Certificate |
1 PC 1 PC 1 PC 2 PCS 1 PC 1 PC |
Please check the all the parts after unpacking, if lacking, connect to the factory
