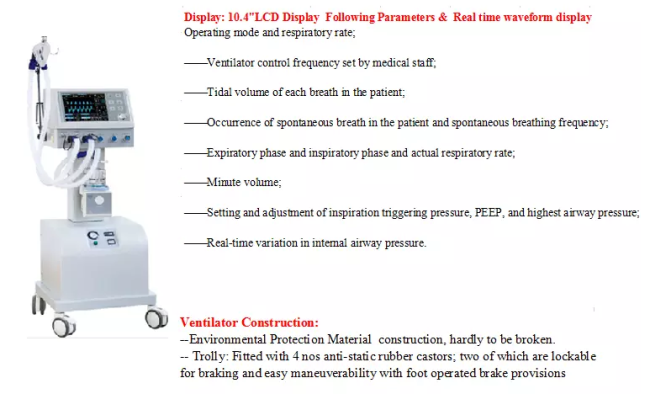

Advanced mode Transport Portable medical Ventilator Machine air breathing apparatus
Ventilator PA-700B (Advance model)
Microprocessor controlled, Pneumatically driven electronically controlled
10.4” TFT display screen for ventilation parameters
Humidifier with temperature adjustment
With medical air compressor, built-in backup battery up to at least 4 hours
Applied for Adult and Pediatric
Main technical specifications:
Breathing Mode: A/C, IPPV, SIPPV, IMV, SIMV, PEEP, SIGH, SPONT. MANUAL
Tidal Volume: 50~1500ml
I/E Ratio: 4:1 ~ 1:4
Respiration Frequency : 1~99 bpm;
IMV Frequency: 1~20 bpm
Lung compliance: ≤30 mL / kPa
Oxygen Concentration: 21%~100%
Maximum Minute ventilation: ≥18L / min
Pressure Limited: 1.0kPa~ 6.0kPa
PEEP: 0 ~ 1.0 kPa
Ptr: -1.0kPa~1.0kPa
Max .Safe Pressure: ≤6.0 kPa
Trigger Method: Pressure Trigger
Control Method: Pressure Control
Ventilation monitoring:
Tidal volume,Minute ventilation,Frequency,Airway Pressure,I/E,inspiration time,PEEP,FiO2,
Waveform of time-airway Pressure and so on.
Product Size
| Length(mm) |
660 440 |
| Width(mm) |
550 290 |
| Height(mm) |
1320 380 |
| CBM(mm3) |
0.50 0.05 |
| N/W(kg) |
52 8 |
| G/W(kg) |
62 12 |
| Remark |
Main Unit CTN/Li-lon
Accessory CTN
|
| CTNS |
1 1 |
