Highly Customizable Glazed Tile Machine For Shopping Malls And Trade Markets

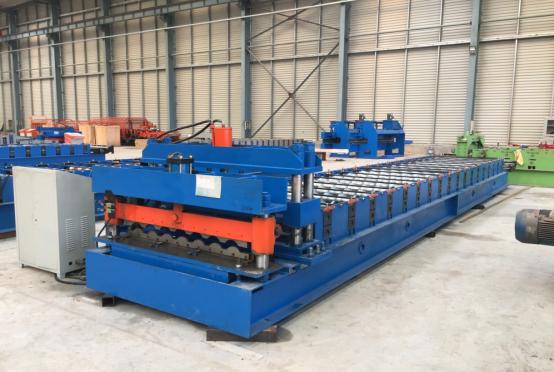

High Working Speed Glazed Tile Roll Forming Machine
Best Price for Glazed Tile Roof Sheet Roll Former Machine is widely used in building: the steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What’s more, equipment can be designed and manufactured as customized requests.
Here Is The One Drawing Profile For Your Reference:

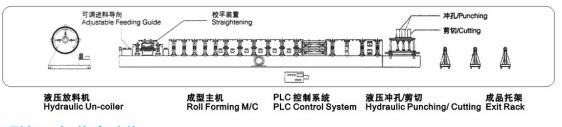

Working Flow: Decoiler – Feeding Guide – Straightening – Main Roll Forming Machine – PLC Contol System – Press – Hydraulic Cutting – Output Table

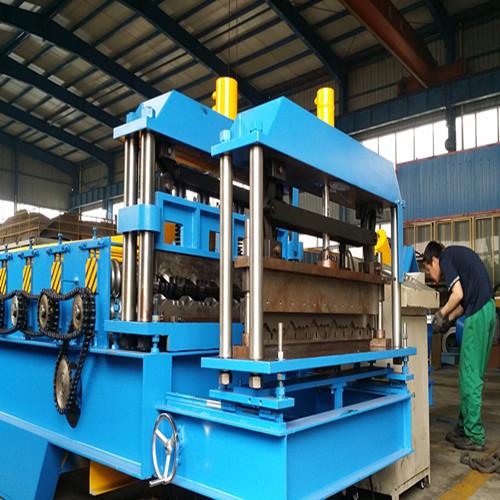

High Working Speed Glazed Tile Roll Forming Machine
Technical parameters:
| Raw material | Colored steel, Galvanized steel, Aluminum steel |
| Material thickness range | 0.2-0.8mm |
| Rollers | 13 rows(according to drawings) |
| Material of roller | 45# steel with chromed |
| Forming speed | 15-20m/min(excluding press) |
| Shaft material and diameter | 75mm, material is 40Cr |
| Type of forming machine | single station with chain transmission |
| Controlling system | PLC & Transducer(Mitsubishi ) |
| Type of cutitng | Hydraulic cutting |
| Material of cutting blade | Cr12Mov with quench HRC58-62° |
| Voltage | 415V/3Phase/50Hz(or at buyer’s requirements) |
| Main motor power | 7.5KW |
| Hydraulic station power | 3KW |
Advantages
1.Certificate: ISO 9001, CE,SGS
2. Lifetime services
3. Introduced Mitsubishi PLC with touch screen to machine controll system.
4. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
Products Feature
1. A stylish and attractive design,giving the apperance of a traditional roof tile.
2. Resistant to frost,heat,hail and gales : 100% waterproof, thanks to the lateral run-off channel on each sheet for several models.
3. The raw material can be in different color, elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa, civil construction etc.
4.Precise forming.
5. High-solid forming stand guarantees the good and uniform quality of final products
6.The operation automatically minimizes the tolerance of cutting length.
