Durable Steel Uncoiler Auto Decoiler Machine With Hydraulic Pump Station For Metal Slitting Line

Steel Uncoiler Auto Decoiler Decoiler Machine

Uncoiler is suitable for all kinds of coil material feeding, no matter "COVAR" alloy or other pure material. Uncoiler works together with the straightener is normal; non-motive style is available as long as you need. The maximum load is 15 ton. And the m aximum material width is 1600mm. Uncoilers are always our best-sellers because many customers order most, which made us design more and more good-look and high-quality uncoilers for all of our clients. The special equipment (selective) has material pressing arm, oil pressure expansion style, oil pressure feeding device and motor adopted speed adjustable style. These special equipment will cost more, and please send inquiry to let us choose the most suitable selective for you

Steel Uncoiler Auto Decoiler Decoiler Machine

Technical parameters

Automatic Operation

Decoiler rotation is automatically loop arm controlled. The loop arm controls variable speed operation, providing smooth stops and starts. Variable speed reduces decoiler.

Safety

The decoiler rotary drive system and mandrel expansion power is fully guarded. The pendant control allows disabling automatic rotation during coil loading.

Electrical Requirements

Three phase electrical supply is required. Equipment can operate from 220-575 volts in 50 or 60 hz.

Construction

Construction includes steel plate and heavy structural sections. Plate seams are seal welded. Structural bracing is included where required. Mandrel expansion & contraction is by a link system including bronze bearings.

Decoiler Finish

After fabrication completion, the decoiler framework is machine cleaned and powder coated prior to electro-mechanical assembly.

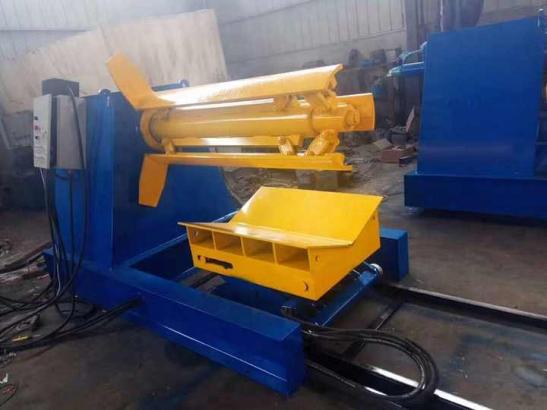

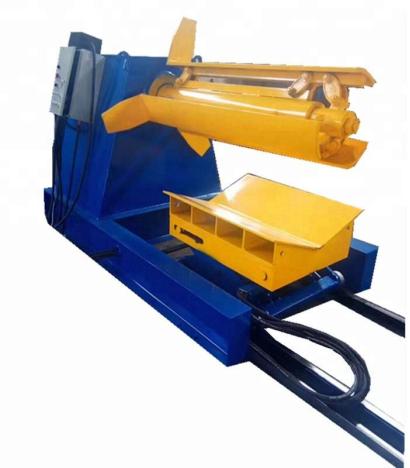

Coil Car Option

A coil car with weight capacity matched to the specified decoiler can be included. The coil car includes a ‘v’ shaped surface to center coils during movement. The coil car includes sufficient vertical travel to touch the mandrel lower surface when fully extended. The powered coil car moves along steel tracks mounted within the decoiler base. Hydraulic check valve prevents vertical coil drop in the event of hydraulic

Installation

The decoiler and coil car can be installed by placing on a typical industrial concrete foundation and drilling holes for concrete expansion bolts.
