Metal U profile with holes rolling machine

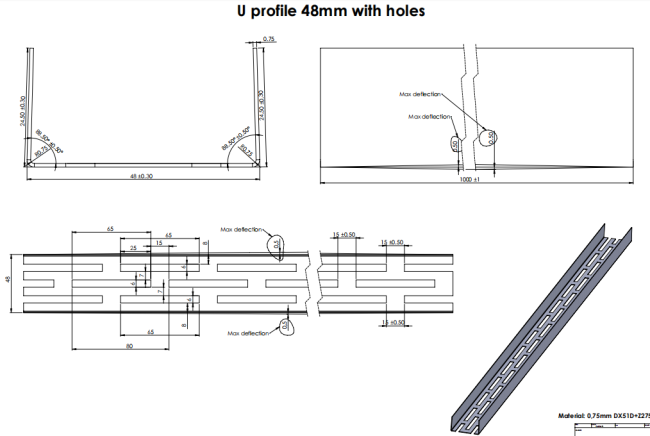

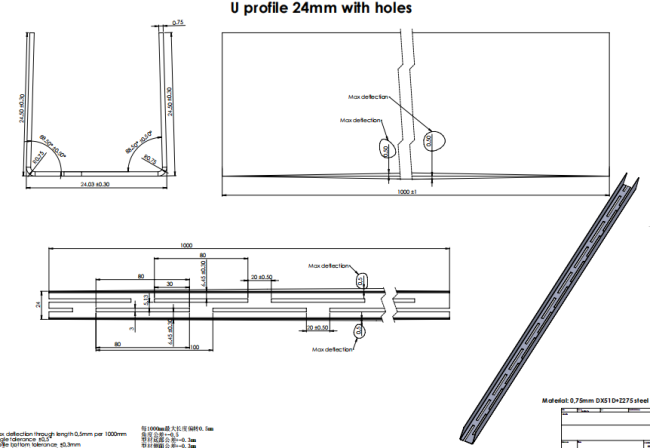

Metal U profile with holes rolling machine is designed to make the U channel channel within the thickness 1.5mm by online rolling and punching in the speed of 15 to 25 meter per minute. Here we take the following drawing profile for example:

Width adjustable U channel:

Width adjustable U channel:

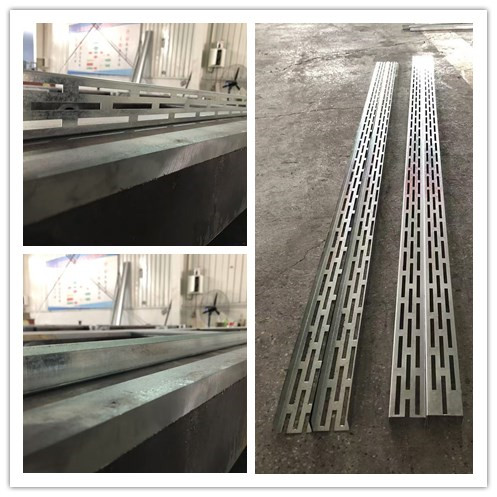

For the C U channel, we have two types: manual adjustment by spacer and linear adjustment by PLC and motor. Here the machine we designed by spacer. If automatic type you need, we can also make for you. So within some range, all sizes could be made by one machine like above two. Here is the machine picture for your reference:

Features of Metal U profile with holes rolling machine:

1. Width adjustable for the U channel.

2. For the hole punching with or without also adjustable.

3. For the thickness of the coil adjustable by handrail.

4. For the Speed also adjustable.

5. D2 roller more durable.

6. Hydraulic shearing more stable.

7. For the punching, if you want to increase speed, we can add more punching station

8. If you like CNC punching, we can also design for you.

Here is the U channel machine working videos for your reference:
