Aluminum Baffle Tube Profile Rolling Machine
                                                                    For Making Ceiling Decorative Strips
  Aluminum Baffle Tube Ceiling Decorative Strips redefine ceiling aesthetics with their innovative design. The unique baffle – tube structure creates a visually dynamic and textured appearance. Aluminum Baffle Tube Profile Rolling Machine is designed to make the metal ceiling square channel for decoration. Here take the following drawing profile for example to show how the machine is designed:

For the profile, the bottom width could be adjusted from 20 to 200mm. The height is adjustable from 20 to 200mm. The material thickness could be from 0.4 to 1.0mm.

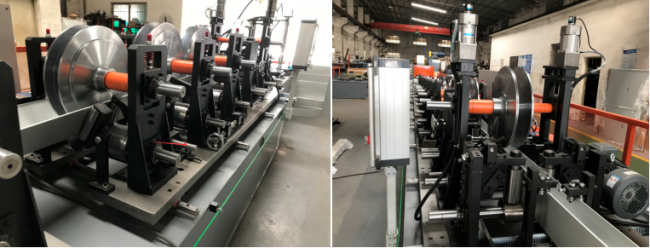

Aluminum Baffle Tube Profile Rolling Machine

Here I will share some knowledge about how the Aluminum Baffle Tube Profile Rolling Machine make so many sizes by one machine: First here is the shape changing process for your reference:

Following the shape changing process, we can learn how to control the machine.
For the size changing by PLC control.
First 4 roller station for lip size and edge changing.
And then to the bottom and height. As input coil width done, bottom width changed and then height changed.

Actually it has 3 parts controlled by motor. Lip size, bottom and height? So once you input the size in the PLC, the motor will take the frame move inside and outside.

The frame will move along the shaft for bigger size and small size.
Now let us check some good application case of Aluminum Baffle Tube Profile:

If the rolling machine quality is not good, what will be like:

There will be waves of the ceiling profile, when looks not so beautiful. So for Aluminum Baffle Tube Profile Rolling Machine design is not a easy work. Bad rolling forming machine will waste your material and make some bad product, it is super obvious to see.
