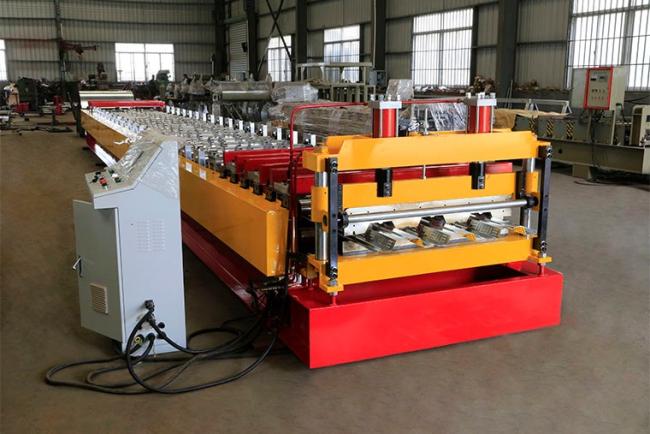

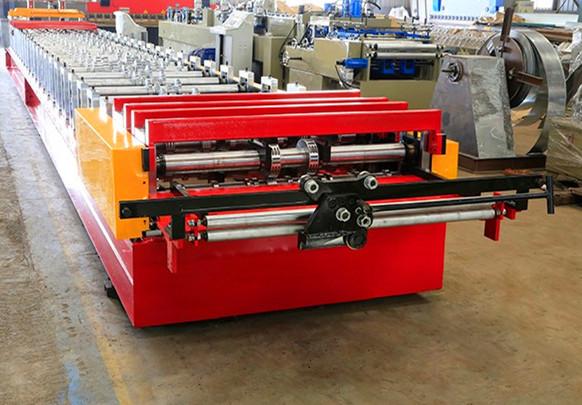

SGS Color Steel Sheet Metal Forming Machine Motor Driving Gear Chain Transmission
Decking Floor Production Roll Forming Line For Building Material
Machine Parts
1) JK 76-960 floor decking machine manual pre-cutter
Brand: JK Original: China
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa

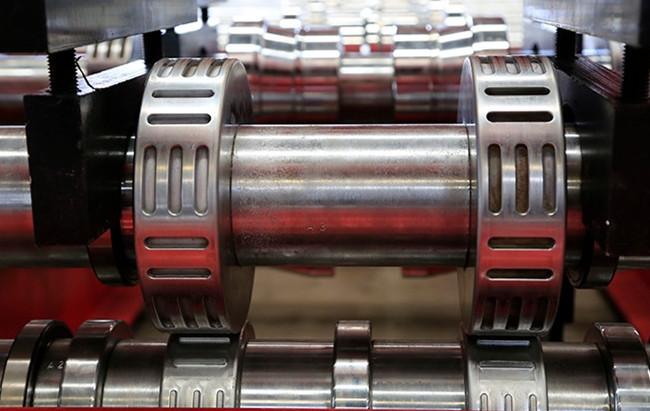

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
Body framemade from 400# H type steel by welding
Suitable for material with thickness 0.8-1.5mm
Shafts manufactured from 45#,Main shaft diameter=φ90mm,precision machined
Motor driving,Gear chain transmission, 22 steps to form.
Main motor=18.5KW , Frequency speed control. Forming speed approx.12-15m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of floor deck roll forming machine
1. The warranty of floor deck roll forming machine
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
Cangzhou Kingter Roll Forming Machine Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the
world, such as Asia, Africa, Europe,South America, and Australia and so on.
1. You are trade company or factory?
----- We are trade company but we also have own factories. Building trade company is just for exporting
various types of cold roll forming machines.
2. Why your price is higher than others?
---- As we persist on that each factory should put quality at the first place. We spend time and
money on developing how to make machines much more automatic, accurate and high quality.
We can make sure that our machine could use more than 20 years without any problem. We can
provide 2 years free quality assurance.
3. How long the machine could be made?
---- Normally speaking, welded pipe making machine could be made without 45 working days. If
you need machines in a hurry, we can make it for you less than a month.
4. How to visit your company?
---
-a. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then
we can pick up you.
b. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
5. Does one machine can only produce one style panel profile?
---
-Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of
panels.
