Steel PPGI Sheet Rolling Machine 5.5kw 20m/ Min Roof Edgings Trim Profiles

                                            Roof Edgings and Trim Profiles F5 rolling machine

Roof Edgings and Trim Profiles F5 Rolling Machine is designed to make roof edging and trim profile like F5 by rolling forming machines. The edging and trim products include drip edge, slag stop, drip cap, W and V valley flashing, ridge roll and brick molding. A variety of colors are available, consult our product catalog for details. The roof edging and trim is made using only the finest copper, aluminum and steel.

The trim F profile has the following features & benefits

Protects against water infiltration.

Available in painted aluminum, mill finish aluminum, copper, galvanized steel and painted steel.

Offered in a wide variety of profiles.

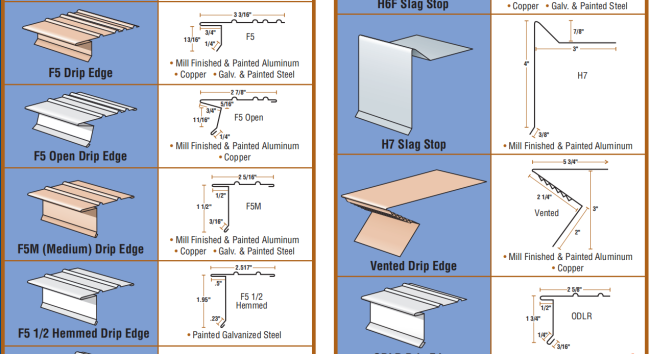

Take the following drawing profile for your reference:

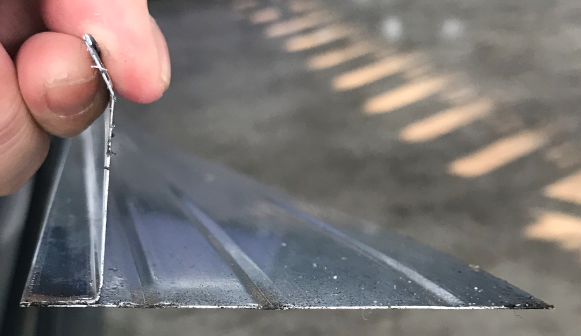

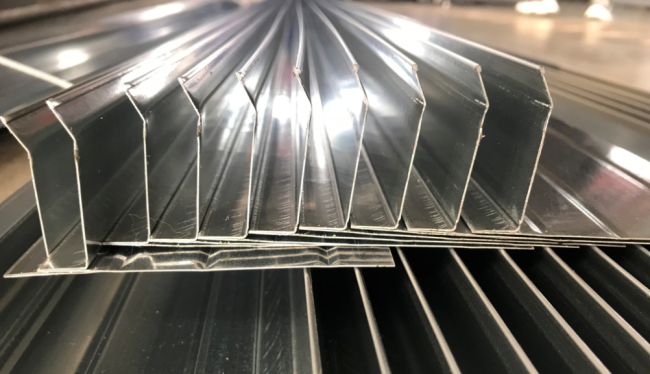

Roof Edgings and Trim Profiles F5:

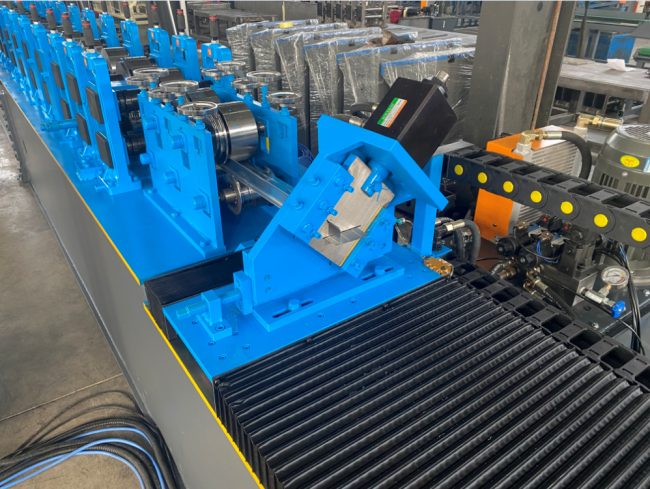

Roof Edgings and Trim Profiles F5 rolling machine:

Roof Edgings and Trim Profiles F5 rolling machine some basic parameters for your reference.

Series	Details	Parameter		Comment
Material	Raw material	Steel		Customer confirmed
	Material thickness	0.4-0.6 mm
Decoiler	Structure	Manual passive type		The standard one to match the production line
		Single head type
	Loading capacity	1.5 Tons
	Coil inner diameter	450-550 mm
Roll forming machine	Guiding device	Placed on the machine by seller
	Rolling shaft material	45# STEEL
	Shaft diameter	50 mm
	Roller material	GB-Cr12
	Rolling station	16 stations
	Work speed	15-20 m/min
	Machine structure	Vertical memorial arch frame
	Machine basic frame	Steel plate welded
	Bearing	Roller bearing		Famous brand of Harbin
	Work power	5.5 kw
	Transmission	By gear		With cover
	Safety cover	available
	Appearance	Good appearance with no burrs in steel body nor traces of rust or defects in painting. Good electrical and hydraulic cable organization Car painting make the machine more glossy		We confirm each detail can match the standard, ensure the machine is 100% new!
	Decoiler, we can change to hydraulic one if you need.

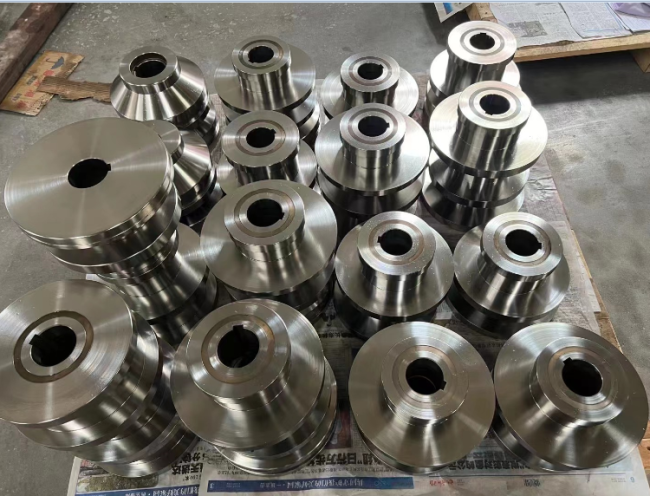

High quality rollers are the key points to make the good quality machine.

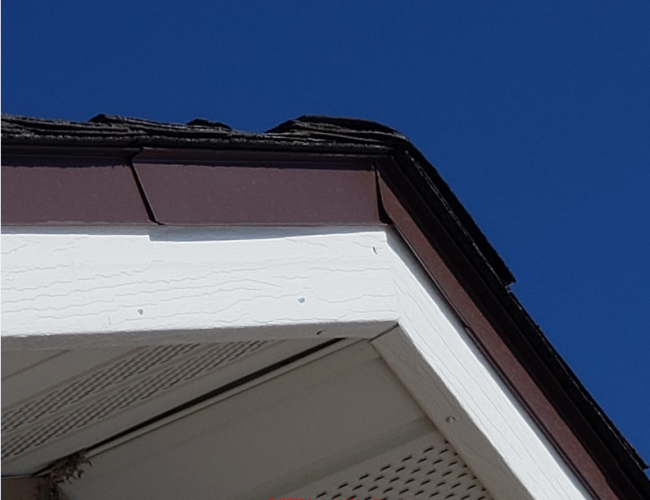

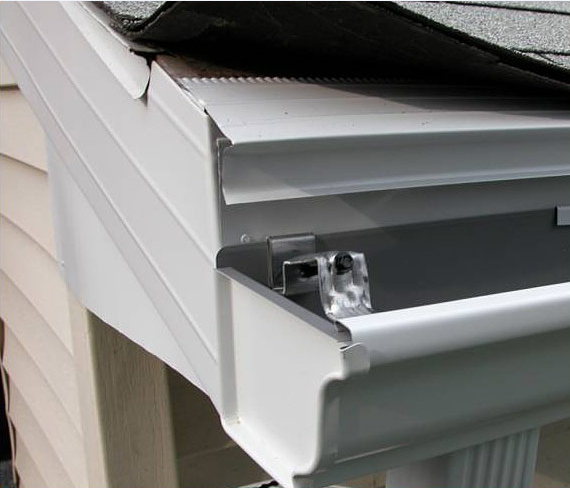

Where to use the Roof Edgings and Trim Profiles F5:

Here is the Roof Edgings and Trim Profiles F5 working video for your reference:
