9.7 Inch Industrial Touch Panel,USB interface, Stable & Sensitive 10 Touch Points
9.7 Inch Industrial Touch Panel,USB interface, Stable & Sensitive 10 Touch Points
Basic info:
| 1 | Type | Projected capacitive touch panel |
|
2 |
Size | 9.7inch |
| 3 | Total thickness | 2.4±0.3mm |
| 4 | Outline of cover lens | 235*185±0.1mm |
| 5 | Outline of ITO sensor | 206.61*160.96±0.2mm |
| 6 | Viewing area | 197.61*148.46±0.2mm |
| 7 | Active area | 199.21*150.06±0.3mm |
| 8 | Interface | USB |
| 9 | Touch point | 10 points |
| 10 | Transmittance | ≥85% |
| 11 | Hardness | ≥7H |
| 12 | Controller | ILItek, EETI, WEIDA, Silicon Works etc. (optional) |
| 13 | OS supported | Win7, Win8, Win10, XP, Android, Linux, WES, WCE |
| 14 | Features | anti-water, anti-explosion |
| 15 | Customization supported | Yes |
Project Development Process:
1. Receive customers' requirements, such as product size, interface, controller, cover lens thickness, application, etc.
2. Offer standard products for customer's evaluation, or provide customization solution.
3. Confirm drawing and commerical terms.
4. Make samples based on the confirmed drawing.
5. Send samples to customers for testing, Provide all the technical files including datasheet, driver.
6. Samples are confirmed, trial production.
7. Mass production.
What can we do?
1. Offer suitable touch soution for touch panels from 3.5" to 65".
2. Provide urgent samples in 12 days.
3. Offer technical support during the whole development and mass production processes.
4. Quick response to complaints and RMA requirments.
5. Assembly solution for LCD and touch panel, adhesive bonidng and OCR bonding.

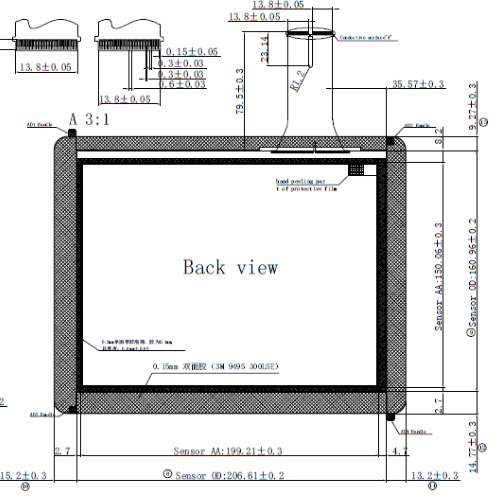

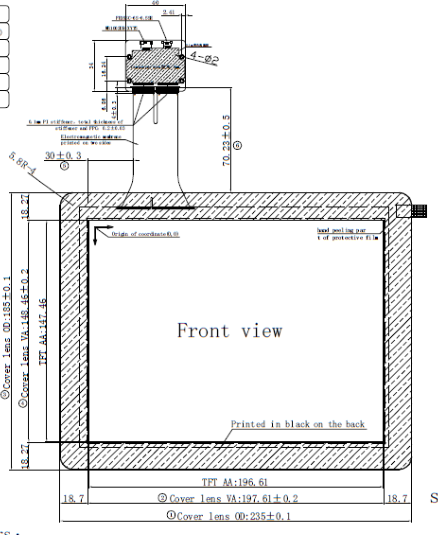

Drawings:

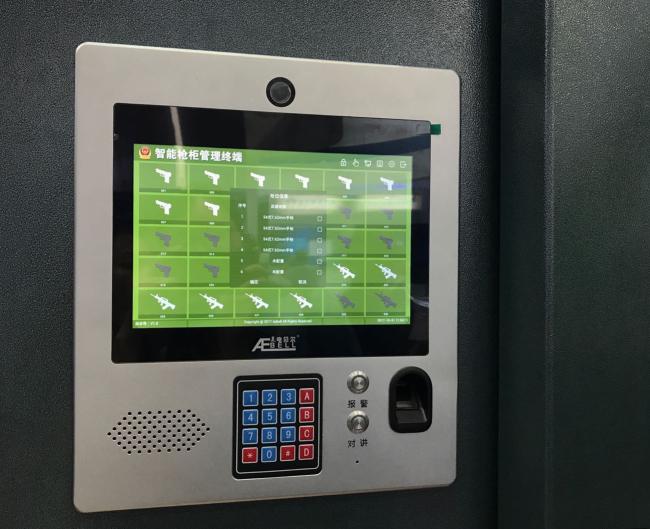

Application:
Industrial touch monitor; Industrial touch control; Medical equipment; Koisk; Vending machine; Military equipment;
