High Resolution smooth touch 15 inch Industrial Touch Panel water-proof

Price Negotiable

Price: Negotiation

MOQ: 1pcs

Delivery Time: 10-15days

Brand: Touch-China

Product Description

High Resolution smooth touch 15 inch Industrial Touch Panel water-proof

Product Specification:

Size:	15inch
Total Thickness:	3.3±0.3mm

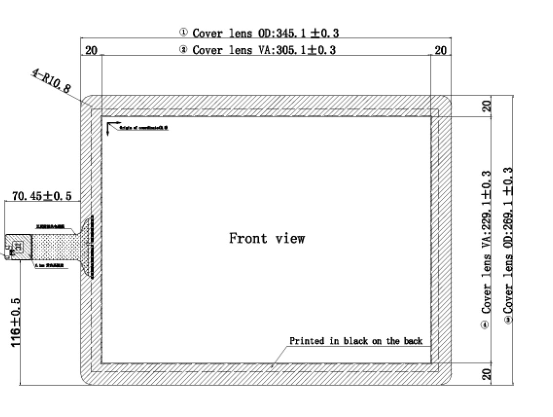

Outline of Cover Lens:	345.1*269.1±0.3mm

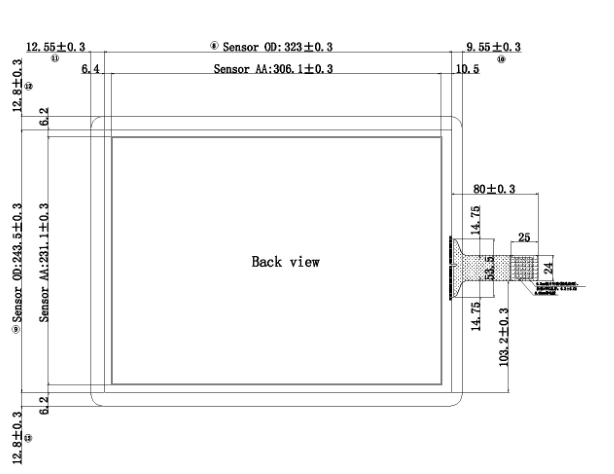

Outline of ITO Sensor:	323*243.5±0.3mm
Viewing Area:	305.1*229.1±0.3mm
Active Area:	306.1*231.1±0.3mm
TP Structure:	G+G
Controller:	ILITEK, WEIDA, EETI, Silicon Works etc. (Cutomized)
Cover glass thickness:	1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Customized)
Cover glass treatments:	AG, AR, AE,AF (Customzied)
CTP interface:	USB
Operating system:	Win7, Win8, Win10, WCE, Android, Linux, XP
Working temperature and humidity	-20°C~70°C,20~85% RH, non-condensing
Storage environment and humidity :	-30°C~80°C, 20~85% RH, non-condensing
Transparency	≥85%
Response time:	<10ms
ESD Air discharge:	8KV
ESD Contact discharge:	4KV
Pen hitting life:	≥10,000,000/point
Pen sliding Durability:	≥500,000 times
Finger Touch life:	≥35,000,000 times
Certifications:	CE, FCC, Rohs
Aspect ratio:	16:9, 16:10, 4:3
Report rate:	100HZ
Input method:	Finger or capacitive pen
Warranty:	1 Year

18 years experience in designing and manufacturing touch panels.
A strong research team for both software and hardware and provide good pre-sales and after-sales service.
Except some standard products, customized touch panel from 3.5” to 70” now, the bigger size is developing and researching.
Cooperated with excellent customers and suppliers.
Long-term cooperation with excellent IC suppliers all over the world.
Good guarantee for product quality and lead time.
Touch panels for automobile, industry are in a leading position in China.
