Industrial Touch Panel with 19inch multi point touch screen for advertising machine
Industrial Touch Panel with 19inch multi point touch screen for advertising machine
Advantages:
1. Capacitive touch technology.
2. Highest resolution, sensitive and fast response.
3. Easy to install with LCD monitor.
4. Dustproof and Waterproof maintenance free.
5. Touch screens can be built in specific dimensions requested by clients in custom orders.
6. Flexible interaction; waterproof presentation, Gloves touch,10mm glass, replaceable cover glass and anti-interference presentation.
Basic Info:
|
Size: |
19inch |
|
Total Thickness: |
2.4±0.3 mm |
|
Outline of Cover Lens: |
421*346±0.3mm |
|
Outline of ITO Sensor: |
393.62*320.34±0.3mm |
|
Viewing Area: |
377.32*302.06±0.3mm |
|
Active Area: |
380.32*305.06±0.3mm |
|
TP Structure: |
G+G |
|
Controller: |
ILITEK, WEIDA, EETI, Silicon Works (optional) |
|
Cover glass thickness: |
1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (optional) |
|
Cover glass treatments: |
AG, AR, AF,AE (optional) |
|
CTP interface: |
USB / RS232 |
|
Operating system: |
Win7, Win8, Win10, WCE, Android, Linux, XP |
|
Working temperature and humidity |
-20°C~70°C,20~85% RH, non-condensing |
|
Storage environment and humidity : |
-30°C~80°C, 20~85% RH, non-condensing |
|
Transparency |
≥85% |
Capacitive touch screen Features:
1. Response speed fast, smoothly touch.
2. Using the latest projection touch technology <3mm touch faster than other touch screen 3-5ms.
3. Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove
edges are not allowed to shortcomings.
4. Precision-touch capacitive screen is using the body's current-sensing.
5. Accuracy up to 99% proficient in writing, no break no drift.
6. Completely dead 10-point touch really, any point can withstand more than 50 million times touch.
Delivery Time:
Samples in stock: 1~3 working days
Customized project: 10~15days for samples
Mass production: 10~18days

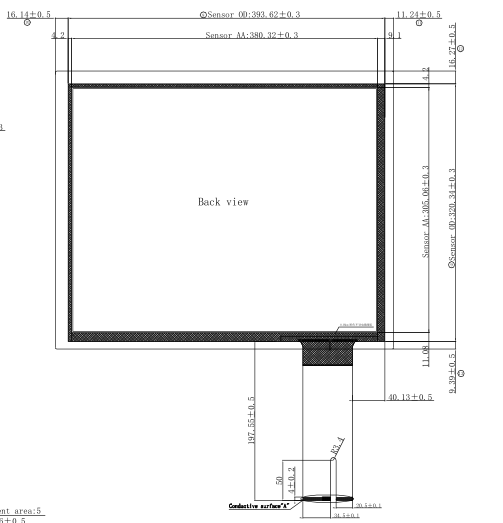

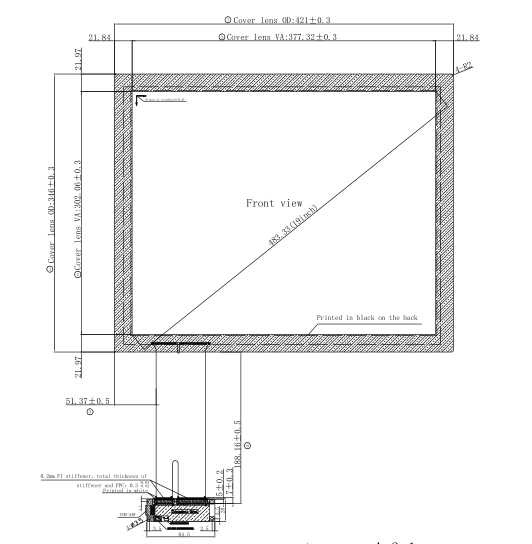

Drawings:
