CE CNC Commercial Quilting Machine 800rpm Double Rocker Mechanical
Price:
Negotiable
MOQ:
1 pcs
Delivery Time:
Negotiable
Brand:
ZOLYTECH
Product Description

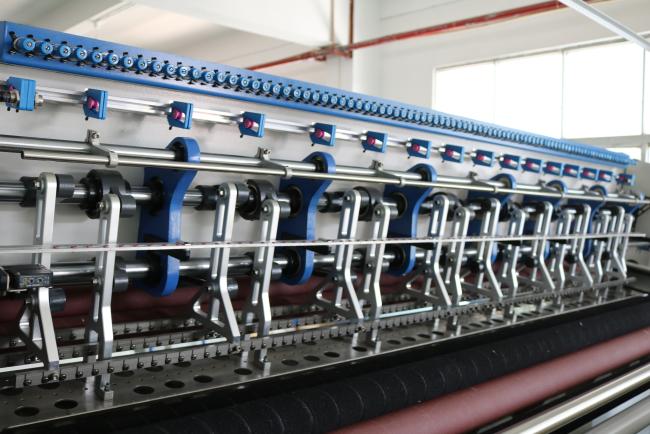

Computerized Chain Stitch Multi Needle Quilting Machine With 800 rpm
| Dimension (L*W*H) | 5400*1650*2050mm |
| Weight | 4000kg |
| Quilting width | 2450mm |
| Needle bar distance |
50.8, 76.2, 127mm (5’’) 76.2, 76.2, 152.4mm (6’’) |
| Needle distance | 25.4mm |
| X-axis movement displacement | 304.8mm |
| Quilting thickness | ≤80mm |
| Stitch length | 3-7mm |
| Capacity | 60-230 (m/hour) |
| Needle type | 24/180 23/160 22/140 21/130 |
| Main shaft speed | 300-800rpm |
| Voltage | 380v/50hz 220v/60hz, 3-phase |
| Power |
7kw |
Advantages:
1. Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.
2. Needle bar and plate adopt double rocker mechanical manufacturing process, avoid the lube and dirty the fabric effectively.
3. Both serial patterns and Tack & Jump patterns (360° and 180°) are available.
4. Automatic stop when the pre-set processing length is finished, which is saving labor and easy operation.
5. Automatic detection of machine running condition.
