• NFPA 20 Compliant-Non-Approved Fuel Tank For Diesel Fire Pump Fire Fighting System Suply Retrun Drain

• Product Details

​

​

 We have many years of experience in the production of diesel engine full tank, here we certify that the production of tanks complies with the NFPA20 requirements for fuel tanks, as follows:

11.4.1.3 Fuel Supply Tank Capacity.
11.4.1.4 Tank Construction.

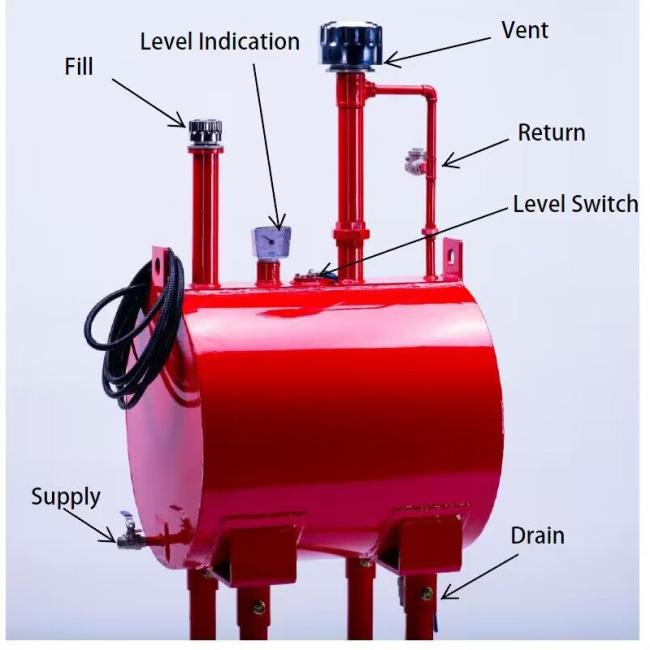

11.4.1.5.1 Each tank shall have a fill connection.
11.4.1.5.2 Each tank shall have a drain connection
1141.53 Each tank shall have a vent connection.
11.4.1.5.4 Each tank shall have an engine supply connection.
11.4.1.5.5 Each tank shall have an engine return connection.

11.4.1.5.6 Each tank shall have a fuel level switch connection.

11.4.1.6.1 Vent piping shall be arranged so that the vapors are discharged upward horizontally away from adjacent walls and will not be trapped by eaves or other obstructions.
11.4.2 Tank level indication

The application of the fuel tank in a diesel engine fire pump is to store and supply diesel fuel to the engine. The fuel is then used to power the engine which drives the fire pump. The fire pump is responsible for delivering water or foam at high pressure and flow rates to extinguish fires.

Diesel engine fire pumps are commonly used in industrial facilities, commercial buildings, and other locations where large volumes of water are needed for fire suppression. The fuel tank is designed to be large enough to provide sufficient fuel for the engine to run for an extended period of time.

In addition to powering the fire pump, the fuel tank also serves as a safety feature. Diesel engines are less likely to overheat or catch fire compared to gasoline engines, making them a safer option for fire suppression systems.

​
