Product Overview:

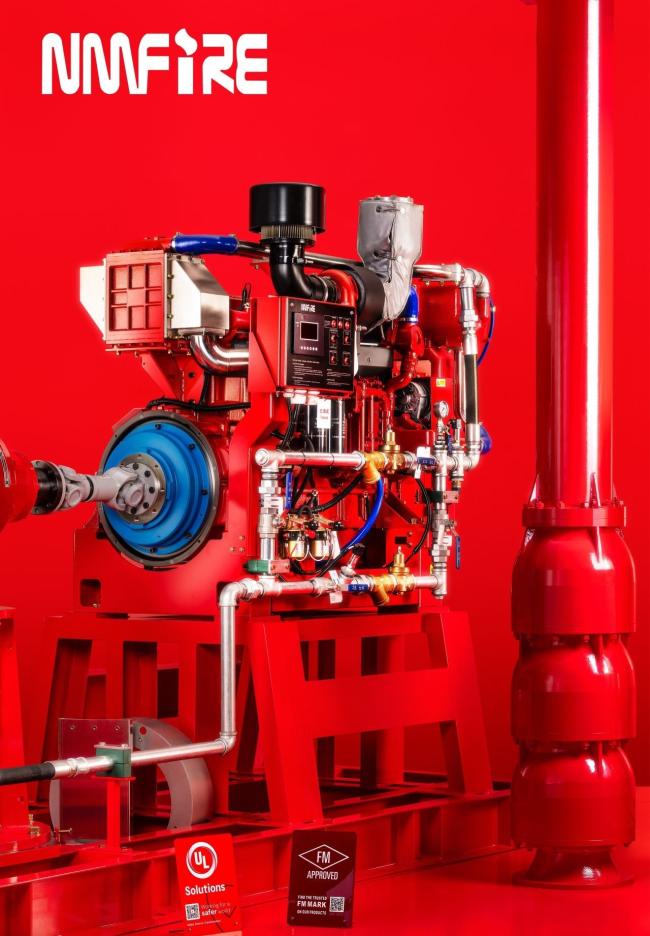

The 150VTP230-20 Vertical Turbine Diesel Engine Driven Fire Pump by NMFIRE delivers high reliability and hydraulic efficiency for fire protection in industrial, commercial, and municipal applications. With a flow rate of 1000 GPM and UL 51–318 PSI / FM 50–317 PSI, it ensures consistent water pressure and rapid response during fire emergencies.

Powered by diesel engines producing 50–289 HP, this vertical turbine pump provides robust performance, long service life, and minimal maintenance. Its vertical turbine design is ideal for deep wet wells, reservoirs, or applications requiring long suction lifts.

Equipped with Tonatech control cabinets and optional UF142-compliant fuel tanks, the pump is plug-and-play, ready to operate immediately after installation. Seawater applications are available with customized corrosion-resistant materials to ensure long-term durability.

As a NMFIRE brand product, it adheres to UL, FM, and NFPA20 standards, providing trusted performance and compliance for both new installations and retrofits.

Key Features:

• Model: 150VTP230-20
• Pump Type: Vertical Turbine Diesel Engine Driven
• Flow Rate: 1000 GPM
• Pressure Range: UL 51–318 PSI / FM 50–317 PSI
• Engine Power: 50–289 HP
• Medium: Freshwater or seawater (customizable)
• Control Cabinet: Tonatech
• Fuel Tank: UF142-compliant (optional)
• Standards: UL, FM, NFPA20
• Applications: Industrial, Commercial, Municipal Fire Protection
• Vertical turbine design for deep suction and high hydraulic efficiency
• Plug-and-play installation with minimal setup time

Technical Parameters:

Applications:

The 150VTP230-20 is suitable for:

1. Industrial Plants: Factories, refineries, chemical plants, and manufacturing sites requiring reliable water supply.
2. Municipal Fire Systems: Reservoirs, water treatment facilities, hydrant networks, and pumping stations.
3. Commercial Complexes: High-rise buildings, airports, and ports with centralized fire protection systems.
4. Marine / Seawater Applications: Coastal or offshore installations (customized material options available).

The pump ensures continuous, dependable operation even under demanding fire protection scenarios and deep suction conditions.

Customization Options:

1. Seawater-resistant materials for coastal or marine facilities
2. Engine power selection within 50–289 HP range
3. Flow rate and head customization
4. Optional controller packages (Tonatech)
5. Packaging: plywood crate or containerized unit
6. Minimum Order Quantity: 1 unit
7. Lead Time: 60–120 days
8. Payment Terms: T/T or L/C

FAQ:

Q1: What engine options are available for 150VTP230-20?
A1: Diesel engines from 50–289 HP; specific models can be selected per project requirements.

Q2: Can the pump handle seawater?
A2: Yes, seawater applications are available with corrosion-resistant materials. Contact us for customization.

Q3: What certifications does the pump hold?
A3: UL, FM, NFPA20.

Q4: What control system is standard?
A4: Tonatech control cabinet.

Q5: Is a fuel tank included?
A5: Yes, UF142-compliant fuel tank included.

Q6: Minimum order quantity?
A6: 1 unit.

Q7: Delivery time?
A7: Typically 60–120 days depending on configuration.

Q8: Payment terms?
A8: T/T or L/C.

“Contact NMFIRE today for specifications, pricing, and seawater configuration options for the 150VTP230-20 vertical turbine diesel fire pump.”
