NFPA 20 500 GPM Electric Motor Driven Fire Pump UL Listed FM Approved with High Pressure

Price Negotiable
Price: Negotiation
MOQ: 1set
Delivery Time: 65 Working Days
Brand: CNP NM FIRE
Product Description

NFPA 20 500 GPM Electric Motor Driven Fire Pump UL Listed FM Approved with High Pressure



Parameters:



Pump NM Fire Split Case
Model SCF125-100-300
Rated flow 500 GPM
Rated head 195 psi
Speed 3550 rpm
Electric Motor Techtop UL
Controller Techtop 150HP
Flow meter GVI
Circulation Safety Valve Cla-Val 55L-60 3/4”

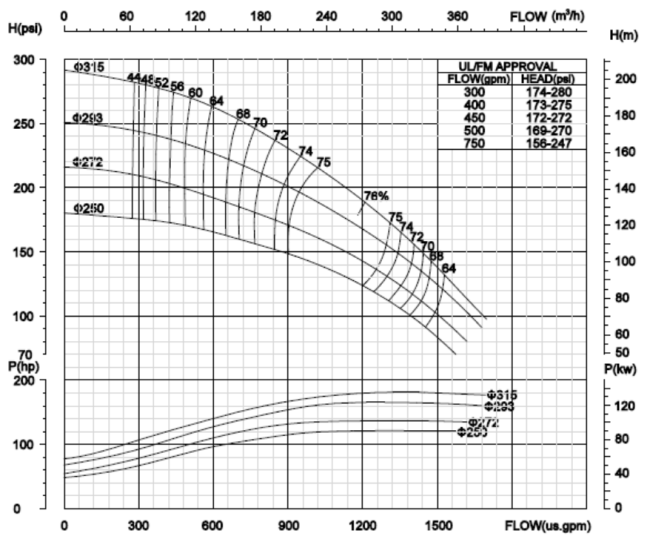

Performance Curve:









Application:



Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises, etc.





Product Type:



Electric motor driven fire pump sets

NFPA20 Package





Advantage:



First-Class international technical standards



NM Fire is the first member of NFPA from Chinese pump manufacturers .



The production of fire pump groups is strictly in accordance with NFPA20, production process and performance testing also meet the requirement of ISO9001, some kinds of products have got APSAD(France), UL , FM and CCCF certificates.



We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well,also the first company in the world who was authorized by UL CCIC as witness testing center for both fire pumps and fire fighting engines.







First-Class testing and inspection equipment.



UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.



NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the

strict requirements of UL certification.
