NM FIRE Vertical Turbine UL/FM FIRE PUMP
| Rated Flow | 2500gpm |
| Head | 74~236psi / 52~166m |
| Speed | 1760rpm |
| Impeller D2 | 373~440mm |
| Max. BHP | 138~511kw |
| Hydrastatic Pressure | 5.8Mpa |
| Brand | NM Fire (UL/FM) |
Necessary Parameters for Quotation:
- Rated flow
- Rated head pressure
- Driven mode ( electric motor / diesel engine)
- Altitude (height above sea level)
- Ambient temperature
- Pump length or pit depth

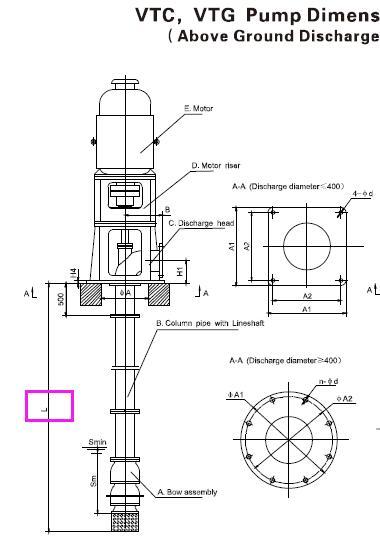

Vertical shaft turbine (commonly referred to as “vertical turbine”) pumps are unique in that
the impellers are intended to be submerged in the water source. They are used for installations
where the water source is below the pump impellers. These pumps have a bowl assembly which
contains several impellers on a vertical shaft – where the discharge of one impeller directly feeds
the suction of the next impeller, and so on – a column assembly built to a specified length, and a
discharge head assembly which holds the motor or right-angle gear drive. In a mechanical room,
the discharge head assembly of a typical vertical turbine pump is the only visible part of the pump.

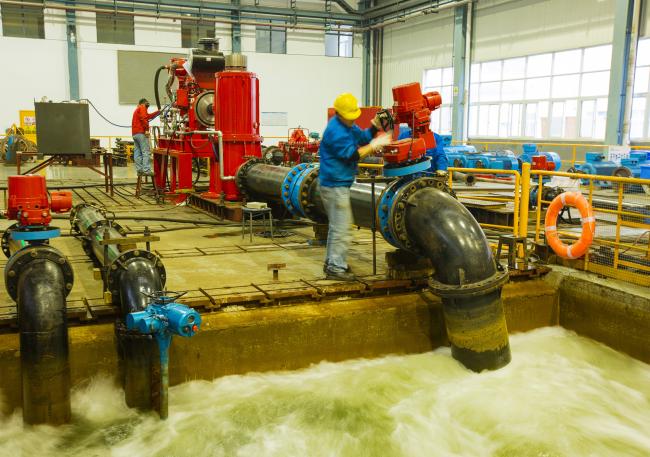

Test before Delivery
