Diesel Engine Driven end suction fire pump Fire Water Pump centrifugal pump
- diesel engine DRIVER 750 GPM END SUCTION Pump set Ul Listed
- Product Details

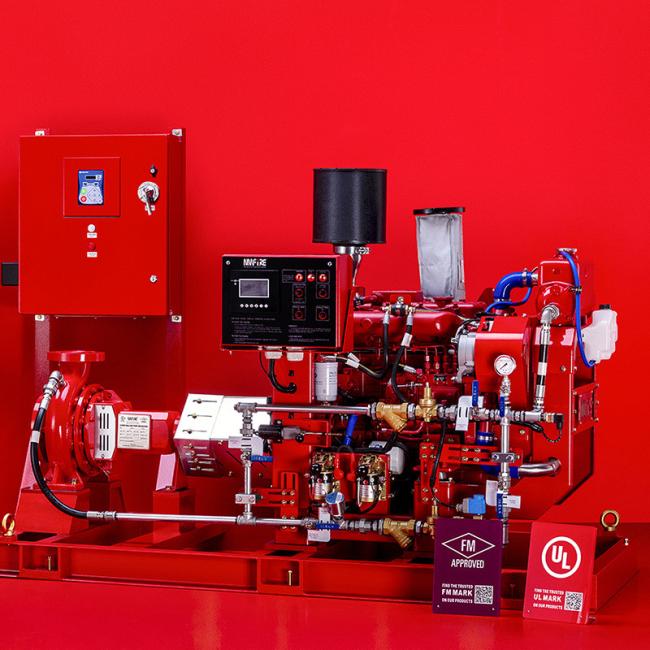

| Diesel Engine Pump Set( Heat Exchanger) UL LISTED | ||
| NM Fire End Suction Pump | ||
| Model | ESF80/26 | This Diesel Engine Group includes the pump(inlet & outlet gauges) Diesel Engine, Commonbase, Silencer, ,Batteries,Flexible exhaust connector, Control System, Coupling (non-listed), Cooling System. Please contact me if you need Fuel tank, Main relief valve,Waste corn or other accessories. |
| Capacity | 750GPM | |
| Head | 115PSI | |
| RPM | 2980rpm | |
| Material: | ||
| Casing | Ductile Cast iron | |
| Impeller | Bronze | |
| Shaft | SS420 | |
| Seal | Gland packing | |
| Wear ring | Bronze | |
| Bearing | SKF | |
| Engine: NM FIRE (UL) | ||
| Model: | NM4-108B | |
| Controller : Tornatech (UL/FM) | ||
| Model: | GPD-24-120/220 | |
The above models are used for 750usGPM@81M END SUCTION Pump set.
Please contact us if you have any other requirements.
Thanks
- CERTIFICATE
-
Five Advantages of CNP NM FIRE
-
①The late-mover advantage of products, we R&D better fire products than other Suppliers; ②Have the most complete and all series of fire pump models; ③Have listed diesel engines with self-owned brand--- NM FIRE； ④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services； ⑤Shorter delivery time.
-
End suction Pump Model Chart
Rated Capacity PUMP MODEL(UL) Rated Net Pressure Range, Approx. Speed, Impeller Diameter, mm. GPM (US) PSI RPM Max Min 50 ESF40/20 76-111 2980 225 190 50 ESF40/20 108-157 3550 225 190 100 ESF40/20 72-109 2980 225 190 100 ESF40/26 100-138 2980 264 225 200 ESF50/20 72-99 2980 225 195 200 ESF50/20 102-142 3550 225 195 200 ESF50/26 105-140 2980 264 230 250 ESF50/20 69-99 2980 225 195 250 ESF50/20 101-141 3550 225 195 250 ESF50/26 99-136 2980 264 230 250 ESF65/20 113-152 3550 225 195 250 ESF65/20 86-107 2980 225 210 250 ESF65/26 119-147 2980 264 245 300 ESF65/20 112-152 3550 225 195 300 ESF65/20 86-107 2980 225 210 300 ESF65/26 119-147 2980 264 245 400 ESF65/20 108-150 3550 225 195 400 ESF65/20 83-104 2980 225 210 400 ESF65/26 119-141 2980 264 245 450 ESF65/20 105-148 3550 225 195 450 ESF65/20 80-102 2980 225 210 450 ESF65/26 114-138 2980 264 245 500 ESF65/20 101-145 3550 225 195 500 ESF65/20 77-99 2980 225 210 500 ESF65/26 111-135 2980 264 245 500 ESF80/20 90-100 2980 225 210 500 ESF80/20 129-142 3550 225 210 500 ESF80/26 116-138 2980 264 245 750 ESF80/20 87-98 2980 225 210 750 ESF80/20 127-142 3550 225 210
- FAQ
Q1.Do you have the UL-LISTED Fire Pump Sets?
Yes, We have the UL/FM and NFPA standard Fire Pump Sets.
Q2.Please quote the XXGPM@XXXPSI Pump without driver.
Sorry, pump are not sold separately, pumps and drives are sold together.
Q3.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?
Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.
Q4.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?
You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.
Q5.May I ask what is the lead time of this fire pump and the jockey piump if ever we order them from you?
Under normal cicumstance,75days ,we will notify the delivery date after receiving the deposit.
Q6.Please advise if you can also send me the cost for the freight?
Pls. confirm the model first,then we wil estimate estimate. The Fire Pump Sets are customized production, actual packaging size and estimated size will be different.
- Service:
1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
