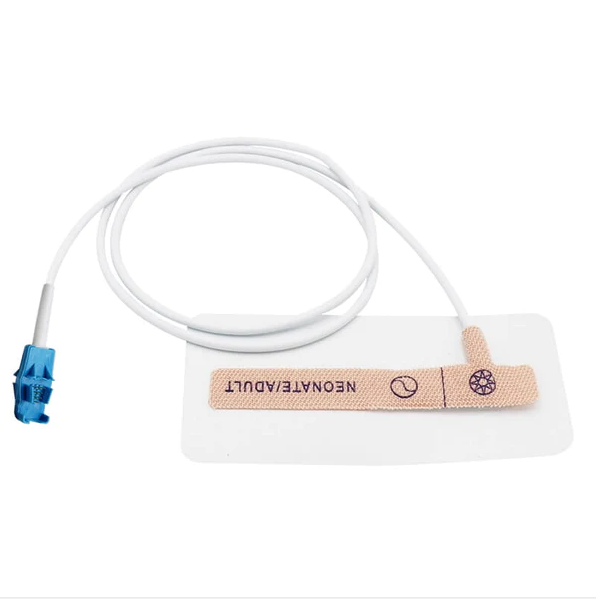

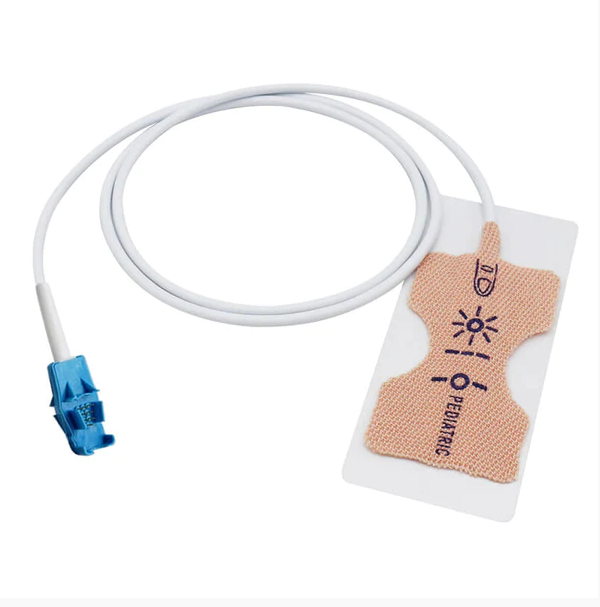

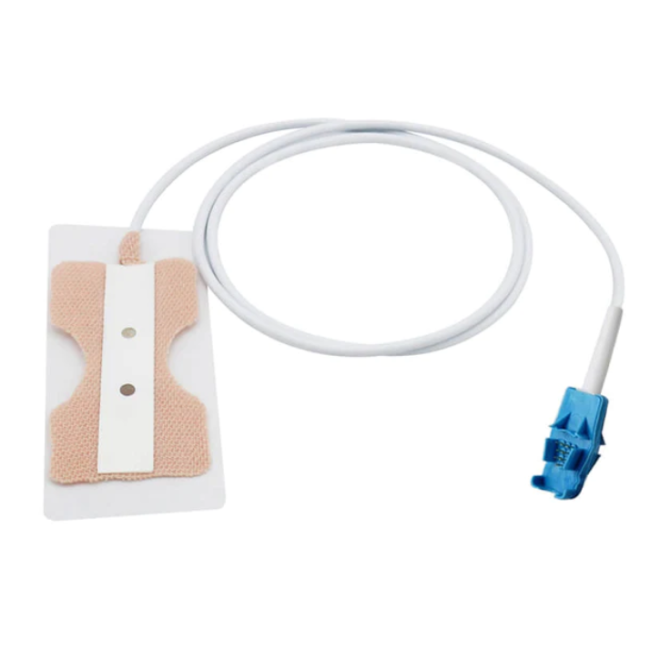

GE Datex Ohmeda TruSat Disposable Spo2 Sensor 8 Pin Connector OXY-AP-10
OXY-AP-10 GE Datex Ohmeda TruSat Disposable SpO2 Sensor
| Cable Color | White |
| Cable Material | PVC Jacket |
| Category | SpO2 Sensor |
| Certifications | CE, ISO |
| Connector Distal | Datex OxiTip “UN” style connector |
| Connector Proximal | Textile adhesive or foam and no-ahesive |
| Latex-free | Yes |
| Packaging Type | Bag |
| Patient Size | Adult (>40Kg),Pediatric (33-88lbs) |
| SpO2 Technology | Datex TruSignal |
| Sterile | No |
| Total Cable Length | 90cm |
Accuracy: SpO2)(±1S.D.); 90-100%±2 digits, 70-89% ± 3 digits, 0-69% unspecified); Pulse Rate: ±2 bpm.
Spo2 Range: 50-100%.
Spo2 Accuracy: 85-100%: ±1%; 70-84%: ±2%; 50-69%: ±3%.
Pulse Rate Range: 25-250BPM.
Pulse Rate Accuracy: ±2 BPM.
Humidity: Operating/Storage/Transportation 0% to 80% non-condensing Altitude Hyperbaric Pressure 86kPa - 106kPa.
Storage/Transportation: 23℉-104℉.Operating Temperature: 32℉~+104℉.
Cable Color: White.
Cable Diameter: 3.2 mm.
Cable Length: 3.3 ft.
Cable Material: PVC Jacket.
Category: SpO2.
Reminder:
when you select the SpO2 sensor, please check carefully the below points:
1) whether the connector is really compatible to your patient monitor socket,such as 5pin or 6pin.
2)whether the patient terminal is the right type you want? the sensor is used for the right people? such as for adult or neonate
| Manufacturer | Model |
|---|---|
| Datex Ohmeda | 3755, 3800, 3900, 3900P, 4700, 5250, Biox 3700, CS/3 (M-OSAT), Cardiocap AS/3 (N-XOSAT or ), Cardiocap S/5, Cardiocap/5, TruSat, TruSat TD, series 37XX |
every Disposable SpO2 Sensor will be inspected to confirm it has good performance.
