80*150° Beam Angle High Power LED Lens , 3030 Cree LED Lens For Streetlight
80*150° Beam Angle Led Traffic Light Lens LED Optics Lenses For Streetlight
Fixing Method:
How will you attach your lens/reflector?
1, Some optics come supplied with an adhesive tape backing ready to be stuck down. Other optics will simply twist or snap onto an LED holder.
2, Some may need attaching with screws or specific clips from the manufacturer. Alternatively a glue
is used to attach the optic. Please note that certain glues are not compatible, check the manufacturer
data for more information.
3, Lenses are often designed for use with specific LEDs. Check the manufacturer data for compatible
LED options.
|
Part Number |
JY-BAA6480150P-23670 |
|
Beam angle |
80*150 Degree |
|
Dimension |
L236*W70 |
|
Lens Material |
PMMA |
|
Transmittance |
93% |
|
Working Temperature |
Lens ≤ 90℃ |
|
Application |
LED Street Lighting |
Delivery and Shipping:
| Trade Terms | EXW, FOB, CNF, CIF |
| Payment Terms | T/T , PayPal , Western Union, Moneygram |
| Lead Time | 1-2 working days for samples order, 5-7 working days for bulk order |
| Shipment Terms | By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc |

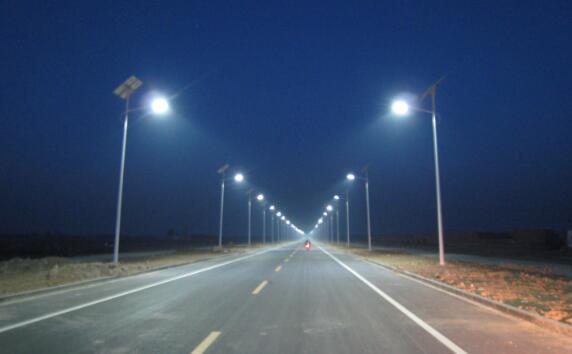

Multiple LED lenses are ideal for wide area lighting, for example street lighting.
Lenses are often designed for use with specific LEDs. Check the manufacturer data for compatible
LED options.
Lens holders provide a mechanical cut-off shield and can also be used to enhance performance.
They are also much easier to install than a stand-alone lens.
LED lens Drawing:
IES:

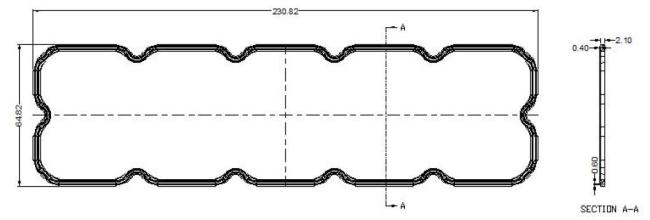

Gasket's Size:
