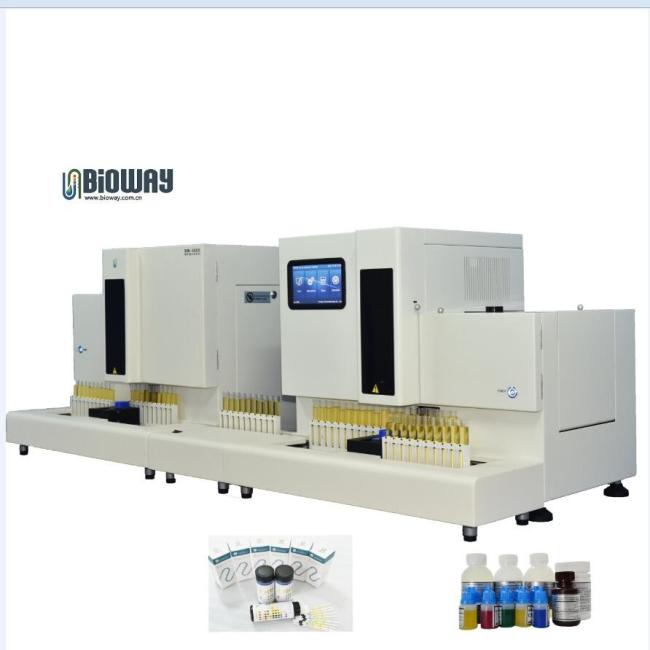

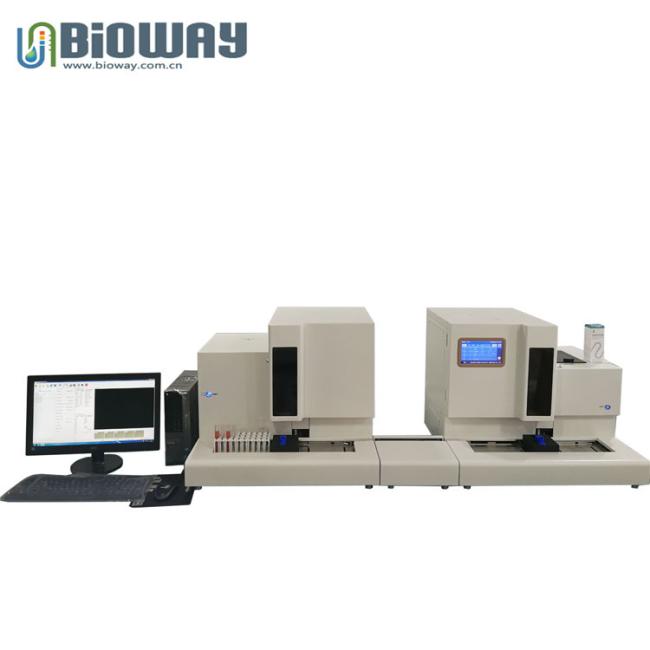

Full Automatic Urinalysis System Specifications

1. Test items:

Standardized classification and quantitative counting for urine sediment

Test parameters: Red blood cells, Poikilocyte, White blood cells, WBCC, Crystals subtypes, Squamous epithelial cells, Non-squamous epithelial cells, Bacteria, Yeast, Casts, Sperm, Mucus and other components in urine.

4,10,11 and 12 chemical indicators in urine can be automatically analyzed according to the applicable strips.

Strips parameters: Glucose (GLU), Bilirubin (BIL), Ketone (KET), Leukocyte (LEU), pH, Ascorbic acid (VC), Protein (PRO), Urobilinogen (URO), Nitrite (NIT), Creatinine (CRE), Calcium (CAL), Microalbumin (MAL), Specific Gravity (SG), Blood (BLD)

2. Detection principle: World- class neutron model, apply machine vision and SVM technology to do a full range of image segmentation, identification, classification and counting.

3. Working Principle:

Urine sediment analysis: using machine vision technology to automatically identify and classify the urine formed elements with automatic morphological method.

Urine dry chemistry analysis: Reflected photoelectric colorimetric analysis

4. Features:

• Automatic urine dry chemical detection and microscopic examination will be finished in one time, which is efficient, fast and pollution-free.

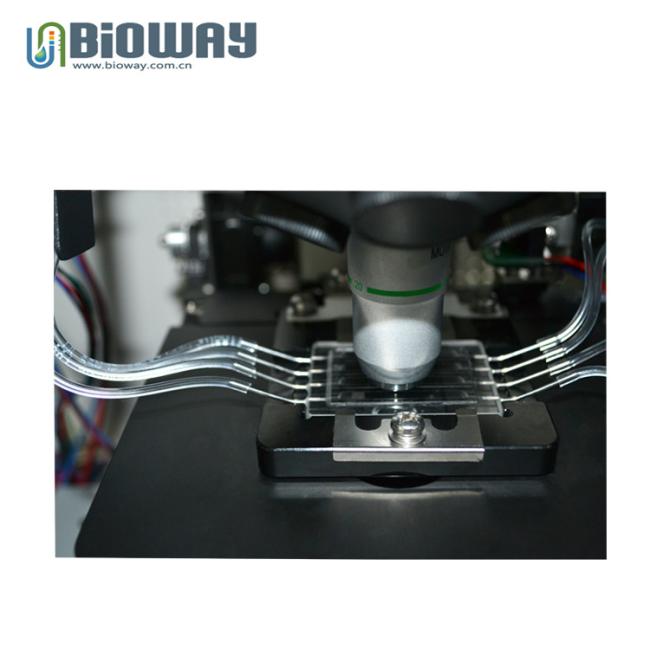

• The design of four-channel counting pool features constant speed 120 samples/hour, positive specimens will not reduce speed.
• The results of urine dry chemical analysis, urine sediment test, physical and chemical indexes, and pictures and texts reported comprehensively.
• Automatic focus calibration without focus fluid, which reduces maintenance costs.
