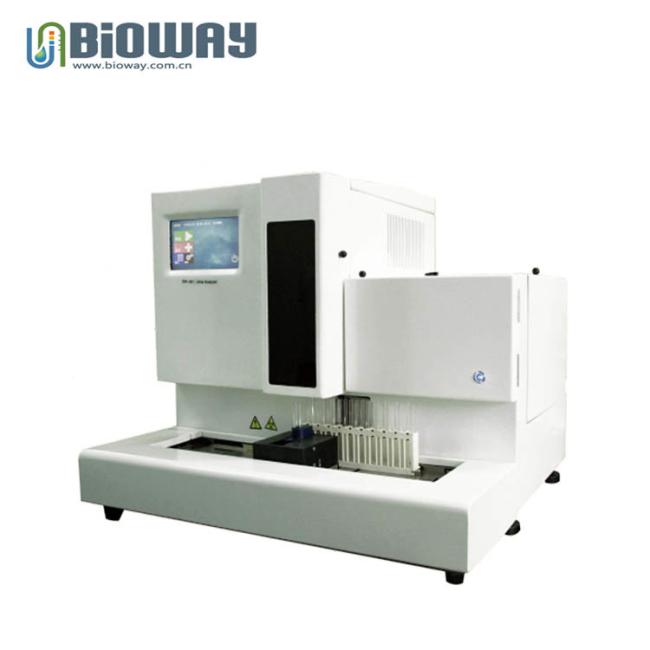

BW-901 Specifications

Test items

Urobilinogen (UBG) Bilirubin (BIL) Ketone (KET) Blood (BLD) Protein (PRO) Nitrite (NIT) Leukocyte (LEU) Glucose (GLU) Specific gravity (SG) pH (pH) Ascorbic Acid (VC) Microalbumin (MAL)

Monochromatic light wavelength:525nmx610nmx660nm

Test principle

a. Test strip: reflectance detection method

b. Test speed: 240 samples/hour (15 seconds/sample)

c. Test tube rack capacity: 5 test tube racks (capacity 50 samples)

d. The sample volume: in the test tube is not lower than the test tube mark line

e. Sample injection volume: less than 1.0 ml

f. Data storage capacity: 20000

g. Emergency records: 10,000

h. Quality control records: 1000

i. External output serial: RS-232 interface, parallel printing interface

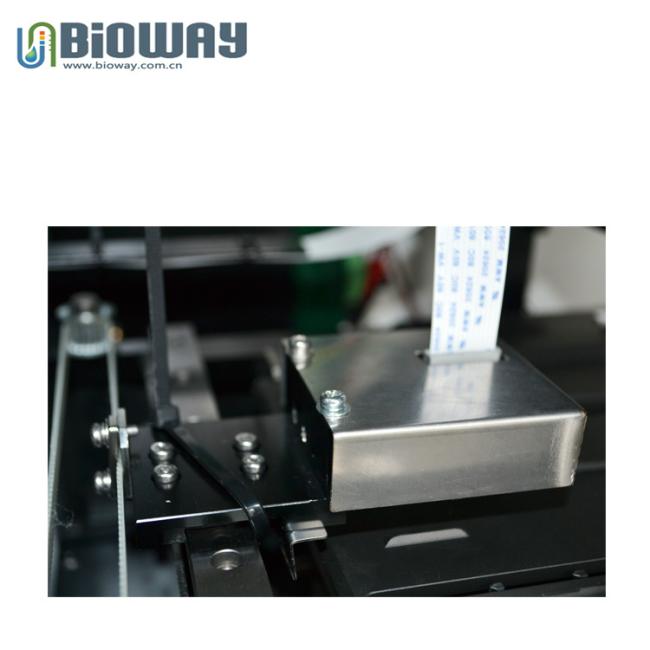

High-precision sample drop system ensures accurate sample drop volume and reduces worktable contamination

Each module of the instrument uses a 32-bit ARM processor and is connected with the CAN bus, fast, accurate and has low failure rate.

Unique IC Card Control System: Reduce the batch difference between test strips, the result is more accurate

Unique system upgrade function: Easy TF card upgrade and maintenance function, users can experience the latest software support synchronously.

Can be connected with urine formed elements analyzer for on-line detection, get comprehensive report of urine dry chemistry test results, microscopic examination results of formed elements and scientific indicators, to provide a comprehensive solution for urine analysis.
