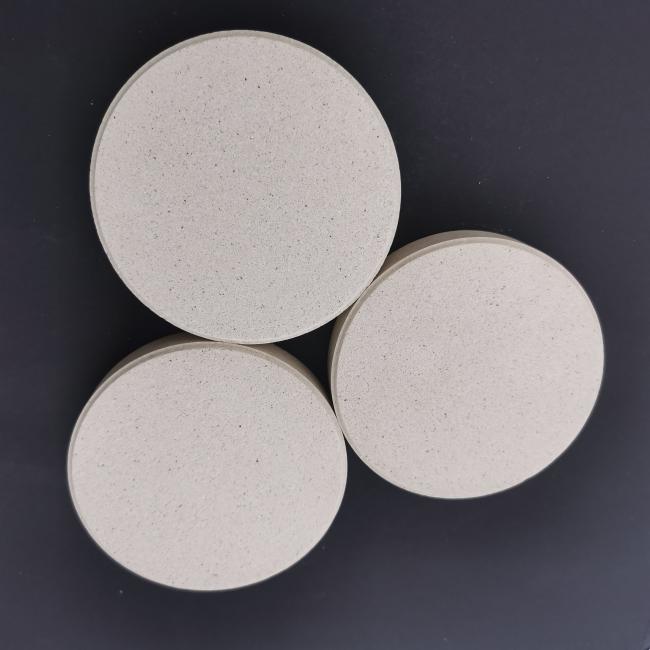

High Thermal Shock Resistance Cordierite ceramic setter plate for powder metallurgy
Refractory Cordierite ceramic setter plate
1.Details
The mullite cordierite ceramic setter plate supplied by us has been widely used in sanirary ware, household
pottery,glass-ceramics,magnetic material furnace etc.
The main products include hollow deck, solid deck,pillar,bracket.ceiling brick,perforated board,and other special shaped products.
By adopting percise production technology, the kiln furniture is characterized with good quality, good thermal shock resistance and good high temperature performance.
We have supplied many customers with best quality with very good feedbac
2.Physical and Chemical Properties
|
Item and Descriptions
|
Specifications
|
|
|
Al2O3 (%)
|
40~48
|
|
|
SiO2 (%)
|
45~51
|
|
|
MgO (%)
|
4~9
|
|
|
MOR(MPa)
|
20℃
|
14
|
|
1250℃
|
12
|
|
|
Bulk Density(g/cm3)
|
1.95-2.00
|
|
|
Open Porosity(%)
|
29.0 max
|
|
|
Phase composition(%)
|
Mullite
|
55
|
|
Cordierite
|
30
|
|
|
Max. Service temperature ℃
|
1280
|
|
3.Feature
1). High temperature resistance.
2). Strong thermal shock stability
3). Resisting corrosion and stripping
4). Long working life
5). Effectively reduce probability of product's deformation, slag stripping etc defects.
