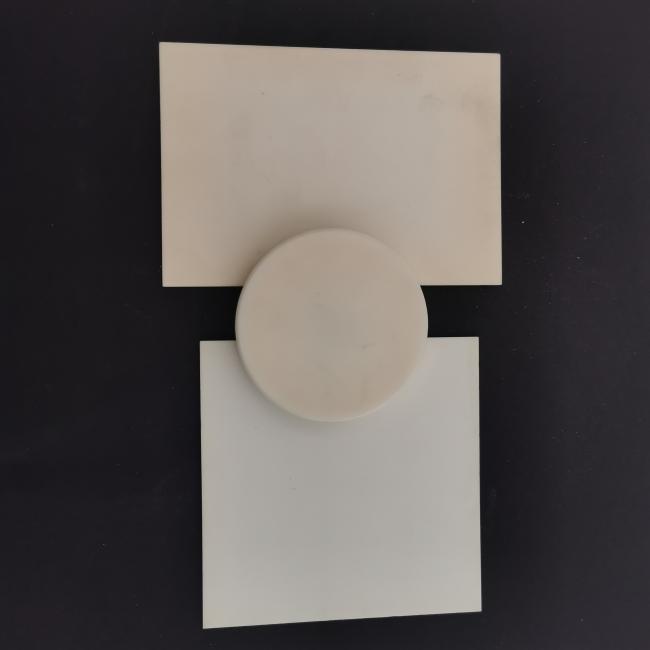

Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance
High Performance Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance
1.Aluminum oxide ceramic plates have a wide variety of applications:
• Alumina plates are hard enough to become armor for personnel or vehicles.
• The corrosion resistivity of alumina plates makes them a great material for the chemical industry.
• Used as a material for industrial furnaces due to its ability to maintain its hardness at high temperatures.
• Used for making parts for CVD thin films, ion implants, photolithography, and semiconductor parts.
• In traditional industries, alumina ceramics are ideal for products such as injector tubes, gas nozzles, and insulators.
2.Technical Data
Item | Unit | Zirconia ceramic | 99% alumina ceramic | 96% alumina ceramic | 95% alumina ceramic | steatite ceramic | Mullite ceramic | cordierite ceramic |
Bulk density | g/cm3 | 6 | 3.8 | 3.7 | 3.6 | 2.8 | 2.2 | 2.3 |
Water absorption | % | 0 | 0 | 0 | 0 | 0 | 12 | 12 |
Thermal Conductivity | (W/m.k) | 10 | 19-30 | 16-28 | 14-24 | 2-3 | 2-6 | 1.3-1.8 |
Resistance to thermal shock, Minimum | TKε | 70 | 150 | 140 | 140 | 80 | 150 | 300 |
Withstand voltage, Minimum | KV | 15 | 20 | 18 | 18 | 20 | 25 | - |
Flexural strength | Mpa | 1000 | 300 | 280 | 240 | 120 | 120 | 30 |
Sinterring temperature | ℃ | 1500 | 1670 | 1600 | 1600 | 1250 | 1250 | 1250 |
Maximum working temperature | ℃ | 1200 | 1500 | 1200 | 1200 | 800 | 1000 | 1000 |
