High Strength High Temperature Refractory Kiln Furniture Casette For Kiln Firing
High Strength high temperature Refractory casette for kiln firing
1. Details

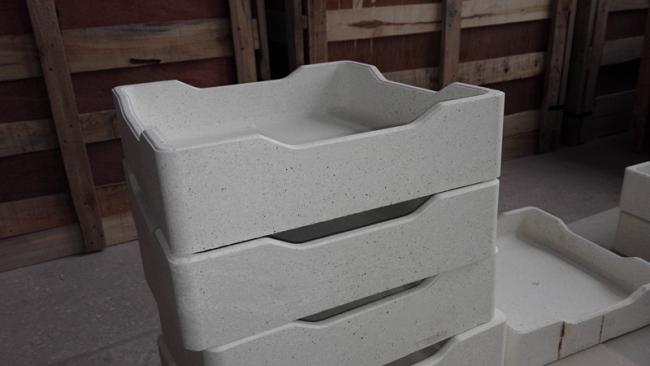

Casette, is made of refractory mud material of a variety of round bowl, made by high temperature roasting. The casette is one of the important kilns for the installation of porcelain. All kinds of porcelain billet, must first be loaded into the casette, and then into the furnace roasting.
high temperature casette used for ceramics has high refractoriness, good thermal shock resistance, high load softening temperature, small expansion coefficient, long life and other fine features, widely used in ceramics industry (tunnel kiln brick, roller Kiln, Pusher kiln , a variety of casetter) and other kilns instead of clay and high aluminum brick, with good effect.
2. Specifications
|
Item Category |
Cordierite |
Mullite |
Corundum-Mullite |
|
| (g/cm3)Density | 2.1 | 2.4 | 2.6 | |
| (%)Apparent Porosity | 28 | 20 | 18 | |
| (Mpa)Room temperature Flexural Strength | 8 | 10 | 14 | |
| Cycle Using Times | >50 | >40 | >35 | |
|
Chemical Composition |
Al2O3 | >40 | >62 | >80 |
| SiO2 | ≤40 | ≤23 | ≤15 | |
| MgO | ≥10 | |||
| Fe2O3 | <1.0 | <0.8 | <0.6 | |
| Main Size | 300*200*150 | 300*250*150 | 310*210*160 | |
| 340*230*145 | 300 H140 | D250 H300 | ||
| D280 H140 |
|
|||
WE CAN FORMULATE ACCORDING TO YOUR DETAILED USING CONDITION.
