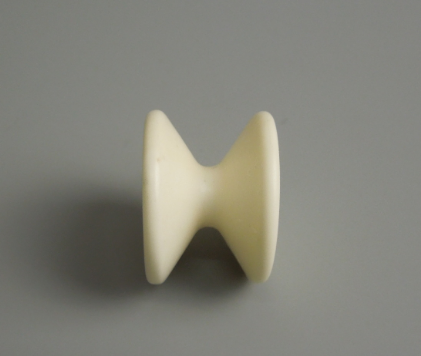

Different Color Ceramic Parts Well Glazed Alumina Textile Ceramics Eyelets / Yarn Guide
1.What is alumina ceramic ?
Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, isostatic pressing and extrusion productive technology etc
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| density | g/cm³ | 2.7 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
2.Features & Advantages
1. High hardness.
2. High heat resistance : Alumina ceramic has execellent themal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
3. Good wear resistance : Alumina ceramic is the material of choice for alumina wear parts.
4. High electrical resistivity : Alumina is an electrically insulating material.
5. High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
3.Application:
1) Knitting Machine
2) Winder Guides for PA thread
3) Twisting Machinery
4) Sensible fiber at low speed
5) Sensible fiber at high speed
6) Weaving machinery
7) Texturing machinery

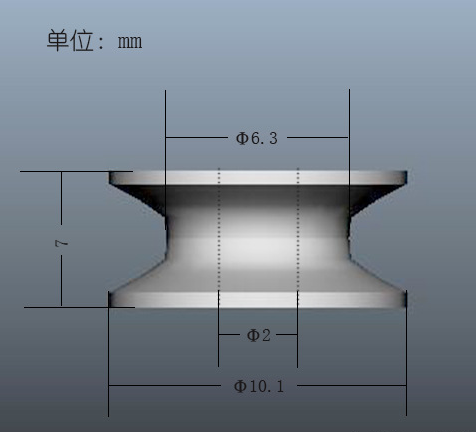

Size can be customized
