95% High Pure White Color Alumina Ceramic Sheet High Thermal Conductive
Price:
Negotiable
MOQ:
20PCS
Delivery Time:
25 DAYS AFTER PAYMENT
Brand:
KAMTAI
Product Description
95% High Pure White Color Alumina Ceramic Sheet High Thermal Conductive
1.Description
Alumina ceramic is made from the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance, but relatively low strength and fracture toughness. Alumina ceramics are generally white but may also be pink or ivory. The color is derived from either the sintering additives or impurities in the raw materials.

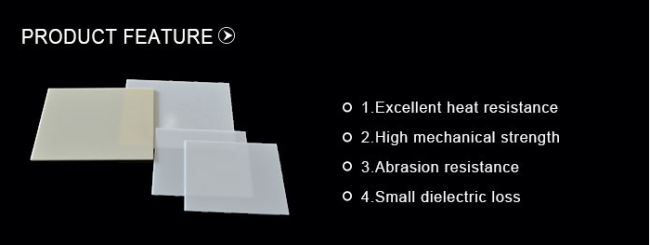

2.Product Feature
![]()
3.Product Information
|
Material
|
95% Al2O3
|
96% Al2O3
|
99% Al2O3
|
Zirconia Ceramic
|
|
Density (gm/cm3)
|
3.6
|
3.6
|
3.9
|
5.6~6.0
|
|
Flexural strength ( Mpa)
|
300
|
340
|
350
|
1000
|
|
Tensile strength ( Mpa)
|
160
|
170
|
240
|
400
|
|
Hardness (Gpa)
|
12.2
|
13.5
|
15.6
|
12.3
|
|
Max use temperature (°C )
|
1500
|
1600
|
1700
|
1100
|
|
Linear expansion coefficient
(20°C-500°C) 10-6/°C
|
7.1
|
7.2
|
8
|
9
|
|
Thermal conductivity
(W/m.K)
|
16
|
24
|
32
|
2~3
|
4..Application
