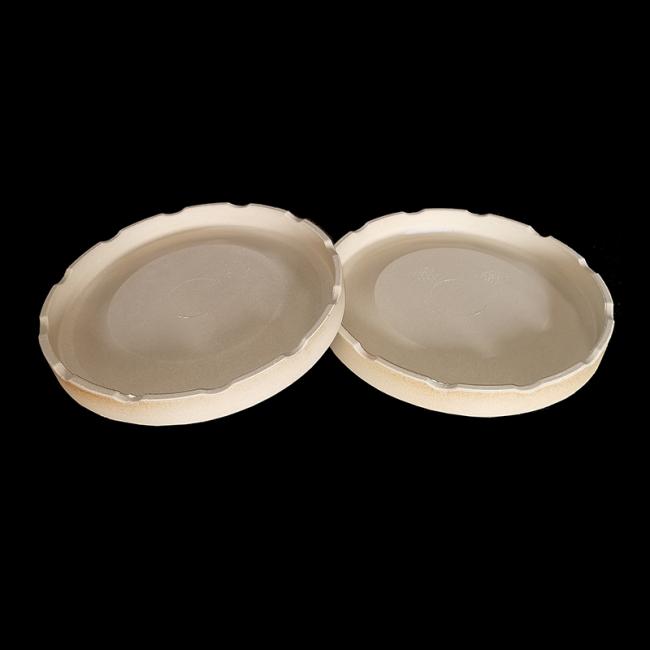

1250 Degree Cordierite Alumina Ceramic Sagger For Powder Firing
High temperature Cordierite sagger for powder firing
1. Cordierite sagger
Cordierite has low creep deformation,good thermal shock resistance and good corrosion resistance during firing.
Cordierite display excellent chemical corrosion resistance and very low gas permeability together with favourite refractoriness ,Cordierite ceramic ,therefore, has been widely used for saggers and crucibles,thermal protection systems and for thermocoule tubes and so on.
The kiln furniture products are formed through mould pressing, which features low level of heat storage, good thermal shock resistance and excellent quality. They are widely used in firing kilns in the production of mosaic, square bricks, tableware ceramics, sanitary ware ceramics, roofing tiles, magnetic materials and advanced ceramics.
The product received universal acclaim from customers. The main specifications are: Pad plate, shed plate, push plate, sagger, ceiling panel, pillars and burner brick.
2.Technical Data
|
Cordierite
|
|
|
DENSITY(g/cm3)
|
1.8-2.0 |
|
APPARENT PORSITY(%)
|
26.00
|
|
ROOM TEMPERATURE FLEXURAL STRENGTH(MPA)
|
10.0
|
|
CYCLE USING TIMES
|
＞100
|
| Advantage | Good thermal shock resistance |
| Application | Industrial Furnaces |
| Using Temperature | 1250℃ |
3. Application
Cordierite sagger is widely used to fire powder in kiln. Using temperature under 1250℃.
