High Load Silicon Carbide Plate For Kiln Furniture High Refractoriness

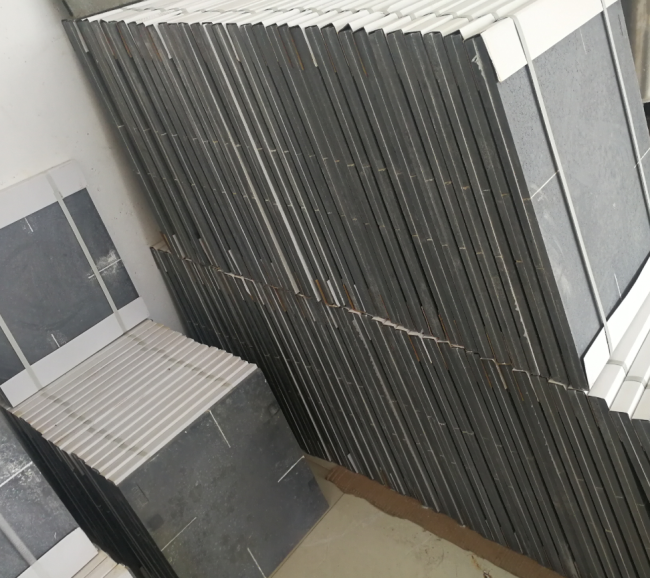

silicon carbide plate for kiln furniture
1. Description
Silicon carbide products with high strength, high hardness, high wear resistance, high temperature resistance, corrosion resistance, oxidation resistance, and good thermal shock resistance, thermal conductivity, and heat-resistant and anti-radical quenching high-temperature creep .
Silicon Carbide parts are widely used in daily-use ceramics, sanitary ware, electrical porcelain, magnetic materials, crystallite glass, industrial furnace, flue gas desulfurization, automobiles, water pump, boiler, petroleum, metallurgical, chemical, mechanical, aerospace, military and other fields.
2.Chemical and Physical index of silicon carbide plate:
| Main Performance Index of Silicon Carbide(SiC) | ||
| Item | Unit | SiC |
| Purity | % | ≥90 |
| Density | g/cm3 | 2.75 |
| Shore Hardness | HS | 110-125 |
| Elastic Modulus | Mpa | 4.12x105 |
| Poisson Ratio | 0.15 | |
| Tensile Strength | Mpa | 2.75 x102 |
| Bending Strength | Mpa | 4.41 x102 |
| Compression Strength | Mpa | 2.94 x103 |
| Thermal Conductivity | W/m.k | 141 (W/m.k) |
| Coefficient ofThermal Expansion | l/ºC | 4.3x10-6 |
| Heat Resistance | 1600C | |
| Thermal Impact Coefficient | cal/cm.sec | 46.5 |
| Acid Resistance | 5 times higher than the usual TC |
|
Packing details:
silicon carbide plate is packaged with fumigated wooden pallet, using paper or non-woven fabrics between layers separated,plastic shrink film protected outside.finally using straps. Or as your requirements.
