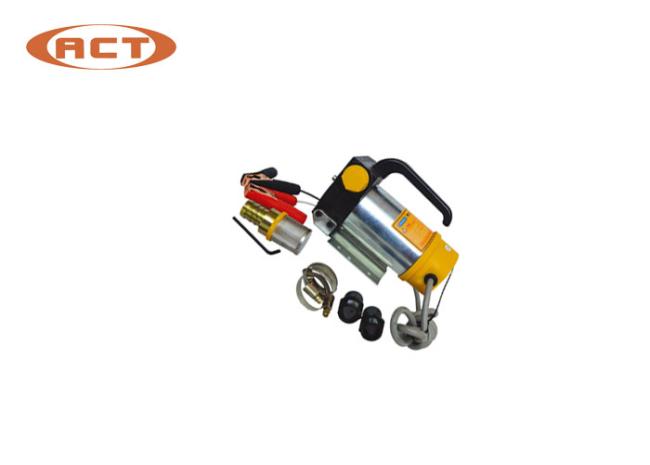

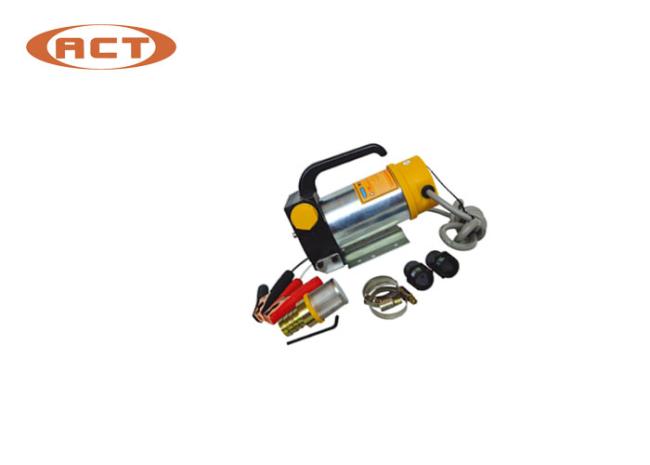

24V Low Voltage DOCTOR Excavator Spare Parts Electric Fuel Transfer Pump
24V Low Voltage DOCTOR Excavator Electric Fuel Transfer Pump
Quick Details
| Place of Origin: | Guangzhou, Guangdong,China |
| Model Number: | KLB-E4006 |
| Usage: | Oil |
| Power. | Electric |
| Pressure: | High Pressure |
| Noload Speed: | 3600r/mins |
| Rated Voltage: | 12V/24V |
| Rated Torgue: | 185W |
| Sample: | Welcome Sample Trial Order |
| Theory: | Rotary Pump |
| Brand Name: | SANDIAN, ACT |
| Structure: | Piston Pump |
| Appliion: | Submersible |
| Fuel: | Diesel |
| Desciption: | Diesel transfer pump |
| Speed Range: | 45L-65L/mins |
| Suction: | 10m |
| Packing. | Carton Packing |
| Standard or No.. | Standard |
Descrptions:
- Portable Diesel/Kerosene Transfer Pump Driven by a 12v or 24V DC motor so can be used where mains electricity or compressed air is unavailable.
- Excellent Self priming properties for the pumping of Diesel/Kerosene in the engineering industry or mobile tanks. A flow rate of up to 60L/min to a head of up to 15meters. 25mm hose barbs with built in on/off switch and battery leads
Specifiions:
- Maximum flow rate: 60L/min
- General working flow: 48-56L/min
- RPM: 2800
- voltage: 12v or 24v
- power: 200w
- Ampere: 19-20A
- max pressure:3bar
- Explosion-Proof: IP54
- Thread: NPT or BSPT
- suction length: 5m
Packing:
- Gross weight: 20.7
- Carton Size: 42*31.5*41
- Case specifiions:4 pieces in 1 carton
Notice:
- Not suitable for low-ignition fuel(such as gasonline, liquefied petroleum gas, alcohol,etc.) transmission.
| Trouble | Reasons | Treatments |
| No oil output at first | 1.(+)(-)reversed | 1. (+)(-)correctly attached |
| 2.oil pipeline leaks | 2.connect the oil pipe and lock the pipe | |
| 3.no oil before the pump start | 3.add a little oil pumped | |
| Little oil transfer | 1.low supply voltage | 1.increase the supply voltage, but not exceed the voltage tolerance |
| 2.excessive sucking and head | 2.adjusting the sucking and lift ranges | |
| 3.eyewinker obstruction in the oil filter | 3.clear foreign body | |
| 4.vane wore | Replace the vane |
