Application:

Rubber granulating, plastic modification, coloring and functional masterbatch, high filler and rubber plastic compounding, etc.

COWIN could not only provide the conical feeder, but also the turn-key project

• Higher efficiency: An automatic and continuous turn-key project including co-kneader, lifter, conical twin screw force feeder, extruder, pelletizing, packing system is available
• Kneading, feeding and extrusion parts could be heated by electricity, vapor or oil based on the specific temperature control requirement.
• Co-kneader use four flight synchronous rotor kneading chamber which is high efficient, low energy cost, sufficient plasticizing and even dispersion.
• Feeding system will use the conical twin screw feeder, it could be some mixing function and mainly force feeding the material to the extruder.
• Conical twin screw force feeder and the extruder speed is controlled by frequency inverter, could be adjusted separately or synchronously
• PLC and HIM control, making your operation more easy and automatic

Specification:

Model: CTS90

Motor power: 5.5kw

Speed control: By frequency inverter

Double wrist screw: high speed tool steel made

Feeding screw: 38CrMoAlA, Nitride steel

Feeding hopper: 100L

Made of stainless steel

Feeding capacity: 500-800kg/hr

Movable support frame

Forward/backward slide roller for easy connection and disconnection

Service:

Before-sale

Introduce products and applications detain

Recommend suitable solution

Provide with reference in formation

Offer lab for test

During manufacturing

Provide with layout and engineering conditions

Inform the project processing status

Offer other documents

After-sale

Provide with installation ,commissioning and training

Register and record customer information

Offer spare parts

Provide with necessary technical support for new application

Visit customer regularly and correct information

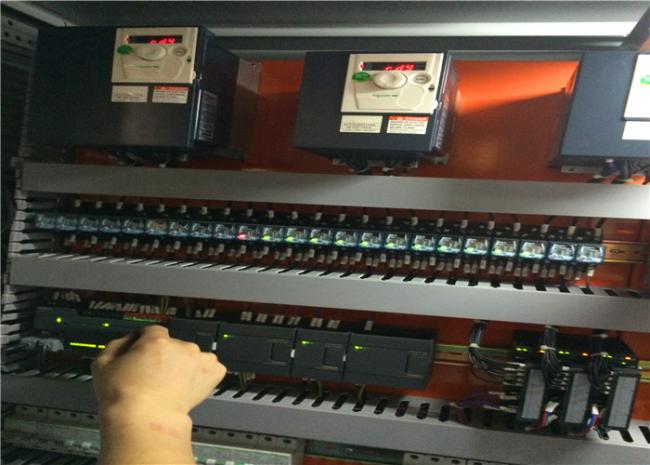

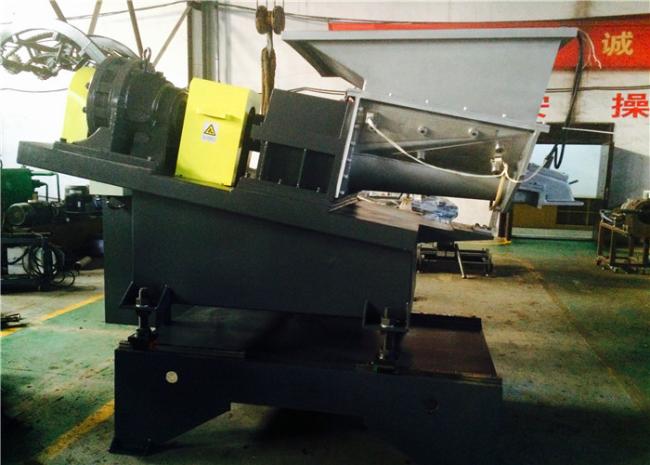

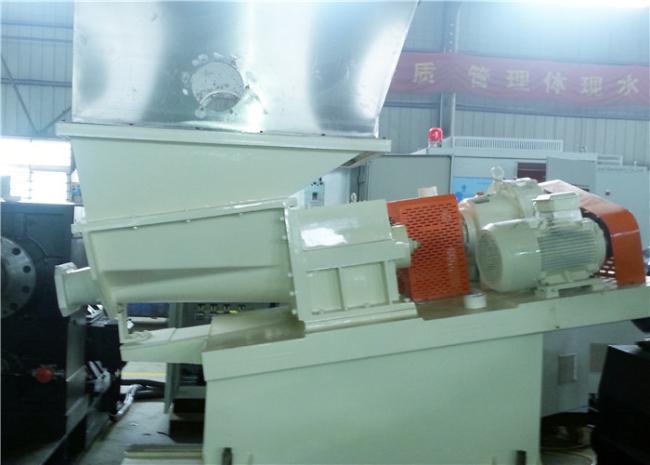

Picutres of the equippment:
