160kw AC Single Screw Extrusion Machine For HDPE 500-700kg hr PLC Control Water Ring Pelletizer
Single Screw Extrusion Line with Water Ring Pelletizer for HDPE with 40% Carbon Black
Company Advantages:
1. Quick response to your needs
2 Specific proposals based on your applications
3. Professional R&D,production,sales and service
4. Rich experience on the plastic compounding extrusion.
5. All machine swill be produced under our QC standard.
Model of Single Screw Extruder
Technical specification
| No. | Denomination of the delivery | Qty. |
| 1.0 | Raw materials dealing units | |
| 1.1 | Co-kneader | 1set |
|
Mixing effective volume: 110L
Driving motor: 110kw Rotation speed: 30/24.5rpm Rotation motor: 5.5kw Rotation angle: 1250 Inner diameter of cylinder: 265mm Electric heating:24kw Cooling: by water0.3-0.4Mpa |
||
| 1.2 | Bucket lifter | 1set |
|
Motor power: 4kw Chain drive Steel double frame Melt chamber: 60L,made of stainless steel
|
||
| 1.3 | Conical twin screw feeder | 1set |
|
Motor power: 11kw Schneider inverter Rotation speed: 70.8rpm Feeding screw: 38CrMoAlA, Nitride steel Feeding hopper: 500L Made of stainless steel Feeding capacity: 1000-1200kg/hr
|
||
| 2.0 | CSE180 single screw extruder | 1set |
|
Screw diameter:φ180mm L/D:20:1 Rotation speed:0～70rpm Motor power:110Kw, AC motor, Frequency inverter: Schneider with global gurantee Power transmission:nylon coupler Gearbox: The gear box of the main extruder is combined with the torque distributing part and has a parallel three shafts design which are tightly in structure. The reducing, torque distributing and the two output shafts are all from NSK The gear is high load hard gear face and gear shaft is made of 20CrMnTi,surface is nitrified processed,HRC56～60. Output/input ratio:1500/70rpm The safety cover needed for the gear shaft. Airproof ring is imported
Screw:made of 38CrMoAlA,nitrified process,depth0.5-0.7mm hardness 950-1100HV,brittleness I grade Barrel: 38CrMoAlA, Nitrified process, depth 0.5-0.7mm,HV1000-1050 Heating: Cast-aluminum heaters. Heating power: 20kw Cooling: Air cooling. 0.55kw fan/section
|
||
| 2.1 | Hydraulic screen changer | 1set |
|
Structure Mode: Plate type Driving Mode:Hydraulic Action Time: <1S； Driving Mode: Hydraulic Station The hydraulic station includes: Driving Oil Pump1.5kw, Highest pressure20Mpa, with safety valve, accumulator. The inspection on pressure and temperature: Set one inspection position before the screen and display the melt temperature. Accumulator6.3L Filtering area:8300 mm^2 |
||
| 3.0 | Water ring pelletizing system | |
| 3.1 | Water ring pelletizer | 1set |
|
Plate material:38CrMnAlA, nitrified process Hole diameter:3.2mm Cutter rotation speed:Max.2900rpm Cutter motor power:5.5kw,AC motor, Frequency inverter: Schneider with global guarantee Cutter speed regulator: the speed can be controlled by manual or operating key of the controlling plate to meet the requirement of variable speed regulation. And the distance between the cutter and the plate can be tiny adjusted to avoid the change of the gap due to the inflation of the hot face plate, which results the damage to the cutter; Pelletier covering: jacket stainless steel with water cooling
|
||
| 3.2 | Water circulating system | 2sets |
|
Water pump: 5.5kw Water tank: 800L S.S. steel made; Heat exchanger: Pipe type
|
||
| 3.3 | Vibrator | 1set |
|
Motor Power: 2x0.37kw Capacity:800-1200kg/hr Length: 2m Stainless steel made
|
||
| 3.4 | Fluidizing dryer | 1set |
|
Conveying blower: 5.5kw Body material: stainless steel; Dryer Dia.: 800mm; Fan motor: 7.5kw Heating power: 30kw; Cyclone separator, vibrating conveyor unit and material level inspectors etc The rest of moisture: 500ppm;
|
||
| 3.5 | Vibrator | 1set |
|
Motor Power: 2x0.37kw Capacity:800-1200kg/hr Three layers Stainless steel made
|
||
| 3.6 | Air blower and silo | 1set |
|
Air blower:5.5kw Silo: 2000L Stainless steel made With disassembled support frame |
||
| 4.0 | Control cabinet | 1set |
| 4.1 | Cabinet for extrusion line | 1set |
|
All low-voltage electrics: Schneider Inverter for main motor: Schneider Temperature controller: OMRON from Japan Solid state relay: Crydom from USA Interlocking and safety design: - feeding interlocking with main extruder; -Pelletizer interlocked with twin screw -Oil pump interlocked with twin screw -melt pressure over the setting value, both extruder will stop; - overload protection for main motor and other motors;
|

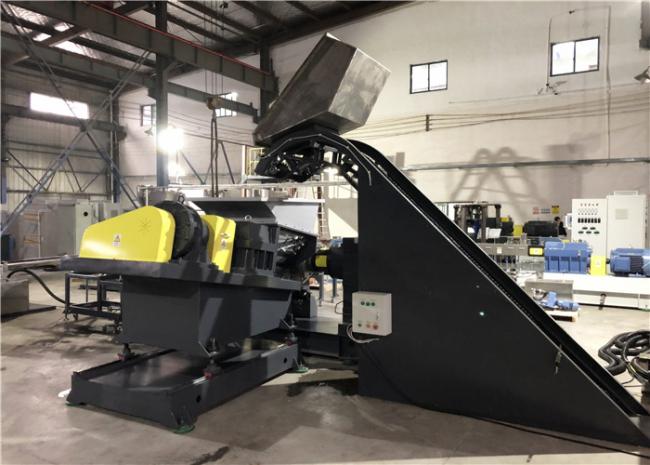

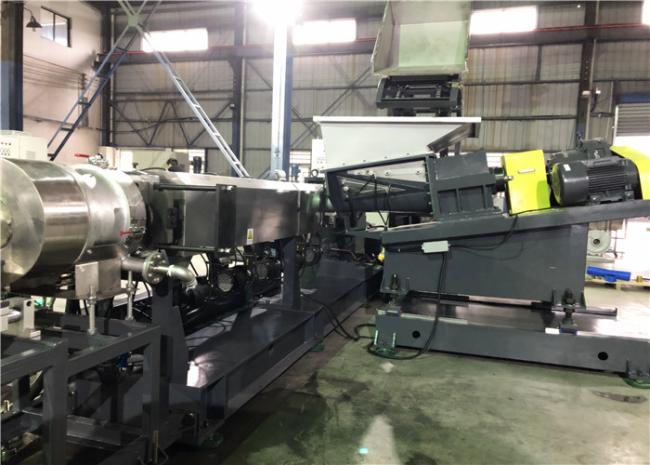

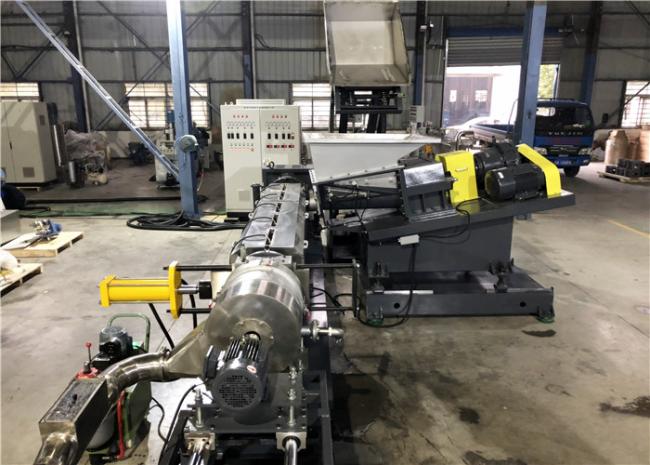

Picutres:
