Triangle Bend Wire Mesh Fence V Shape V Mesh Security Fencing Powder Coating
Factory Triangle Bend Wire Mesh Fence - V Shape Fence
What is V Mesh Security Fencing?
V Mesh Fence, are integral components of V Mesh fencing systems, featuring a unique V-shaped wire pattern.
V Mesh Security Fencing Colors
V Mesh Security Fencing Description
Type: Garden Fencing
Place of Origin: Hebei, China
Frame Material: Metal
Metal Type: Steel
Surface Treatment Type: Heat Treated
Finishing: PVC Coated,Powder Coated. Electric/Hot dipped galvanized.
Item: weld wire fence
Material: high quality low carbon steel wire/tube
Wire diameter:3-6mm
Mesh Aperture:50*100mm,50*150mm,50*200mm,100*100mm,100*200mm,etc
Height: 1.03m,1.23m,1.53m,1.83m,2.03m,2.23m,etc
Width:From 1000mm to 3000mm
Color:RAL6005,RAL9005,RAL9010,other color can make as your interesting.
Post: Square post:50*50,60*60,80*80,40*80mm,100*100mm;Round post:48,60,75mm,Peach post:70*100mm,etc
Fence post thickness:1.0-5.0mm
V Mesh Security Fencing Specification
Garden fence panels detailed specificaitons,as bellows:
| Wire Diameter(mm) | 3mm,4mm,5mm |
| Panel Height(mm) | 830, 1230, 1500, 1530, 1700, 1730, 1800, 1830, 1900, 2000, 2030, 2230, 2400, 2430, etc. |
| Panel Width(mm) | 2000, 2250, 2500, 2900, etc. |
| Hole Size(mm) | 50*50, 50*100, 50*150, 50*200, 55*100, 55*200, 60*150, 65*100, 65*200, 75*150 |
| Post Style | square post, round post, rectangle post, peach post, |
| Specification of Welded Wire Mesh | ||||
| Opening | Wire Diameter | Width
0.4-2M
Length 5-50m |
electric galvanized before welded,
electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire |
|
| In inch | In metric unit | |||
| 1/4″ x 1/4″ | 6.4 x 6.4mm | BWG24-22 | ||
| 3/8″ x 3/8″ | 10.6x 10.6mm | BWG22-19 | ||
| 1/2″ x 1/2″ | 12.7 x 12.7mm | BWG23-16 | ||
| 5/8″ x 5/8″ | 16x 16mm | BWG21-18 | ||
| 3/4″ x 3/4″ | 19.1 x 19.1mm | BWG21-16 | ||
| 1″ x 1/2″ | 25.4x 12.7mm | BWG21-16 | ||
| 1-1/2″ x 1-1/2″ | 38 x 38mm | BWG19-14 | ||
| 1″ x 2″ | 25.4 x 50.8mm | BWG16-14 | ||
| 2″ x 2″ | 50.8 x 50.8mm | BWG15-12 | ||
| 2” x 4″ | 50.8 x 101.6mm | BWG15-12 | ||
| 4” x 4″ | 101.6 x 101.6mm | BWG15-12 | ||
| 4” x 6″ | 101.6 x 152.4mm | BWG15-12 | ||
| 6” x 6″ | 152.4 x 152.4mm | BWG15-12 | ||
| 6” x 8″ | 152.4 x 203.2mm | BWG14-12 | ||
| Note: Special specifications can be made according to customers requires. | ||||
| Wire Dia | Mesh Size | Panel Width | Panel Height | Folds | Post Height | Post Model | |
| burying style | bass style | ||||||
| 3.0mm; 4.0mm; 5.0mm; 6.0mm |
50*100mm; 50*200mm; 50*150mm; 70*150mm |
1-2.5m | 1.03m | 2 | 1.4m | 1.2m | Square; Peach; Round |
| 1.23m | 2 | 1.6m | 1.4m | ||||
| 1.53m | 3 | 2.0m | 1.7m | ||||
| 1.73m | 3 | 2.2m | 1.9m | ||||
| 1.83m | 4 | 2.3m | 2.0m | ||||
| 2.03m | 4 | 2.5m | 2.2m | ||||
| Color | RAL6005,RAL9005,RAL9010,other color can make as your interesting | ||||||
V Mesh Security Fencing Process
| 1. | Black wire→Welding→Hot dipped galvanized→Powder coated/PVC coated |
| 2. | Black wire→Hot dipped galvanized→Welding→Powder coated/PVC coated |
| 3. | Black wire →Welding→Electric galvanized→Powder coated/PVC coated |
| 4. | Black wire→Electric galvanized→Welding→Powder coated/PVC coated |
V Mesh Security Fencing Features
This style Fence panel using high quality low carbon steel wire welded .The fence surface after PVCor power coating will be brightness and comfortable ,it has highability to resist corrosive and unltraviolet.
V Mesh Security Fencing Application
- Car Parks
- Sports & Recreation
- Perimeter – Medium Security
- Schools
- Retail
- Industrial Units
Product Details

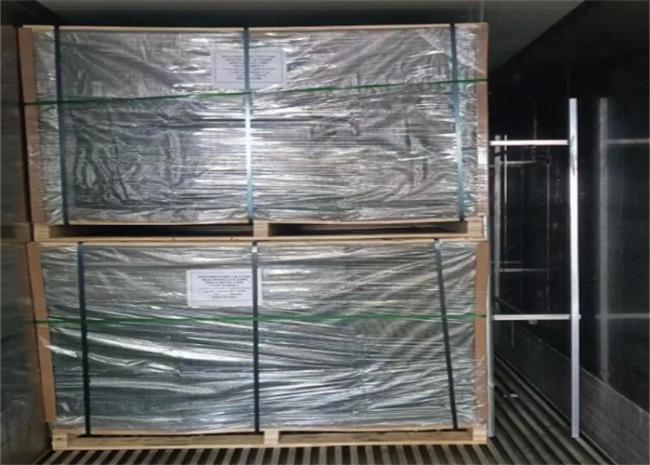

Container Loading Details
