24/110# Circle Diameter 250mm Screen Mesh For Plastic Extrusion Production Line

Price Negotiable

Price: $0.09-$1.97per piece

MOQ: 1 piece

Delivery Time: 10-15 days after get the deposite

Brand: BM

Product Description

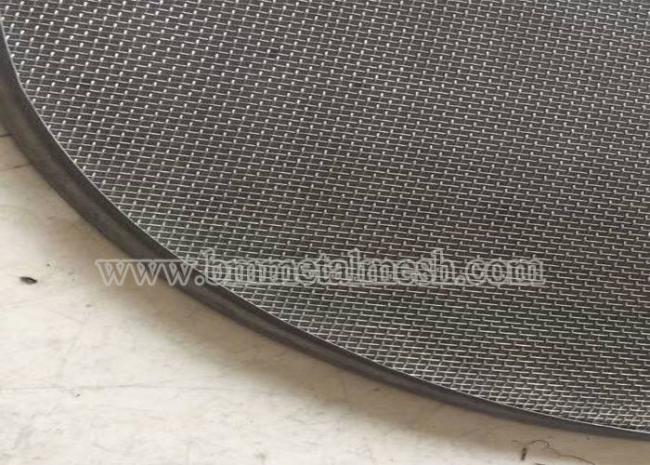

24/110# Circle Diameter 250mm Screen Mesh For Plastic Extrusion Production Line

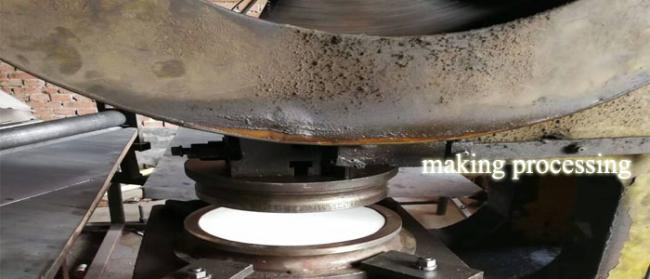

24/110# Circle Diameter 250mm Screen Mesh For Plastic Extrusion Production Line Making Processing:

Edge Smoothly!

24/110# Single Screen Mesh Filters For Plastic Extrusion Production Line

Material:Mild Steel/stainless steel

They are predominantly used in the plastic reclamation industry, often with a Dutch Weave filter used in conjunction with a plain weave support filter.

These are also used in the extruded profiles and blown film industries where the contamination of the raw material is less and there is often lower pressure within the extruder head.

These diameters can be supplied in all of our Standard Stock Specifications as well as the range of Dutch Weaves in both stainless and plain steel where applicable

Specifications Listed by Absolute Micron Retention

Mesh count per 25.4mm	Absolute micron retention (mu)	Weight Kg/M2	Cloth Thickness (mm)
80 x 300	32 - 36	0.98	0.25
80 x 400	36 - 45	0.82	0.23
50 x 250	56 - 63	1	0.32
50 x 280	71 - 75	1	0.32
40 x 200	75 - 80	1.3	0.4
30 x 150	80 - 100	1	0.5
24 x 110	100 - 112	2.5	0.76
22 x 140	140 - 170	2.1	0.66
20 x 150	160 - 180	1.55	0.5
20 x 150	170 - 190	1.6	0.55
18 x 100	200 - 210	2.05	0.69
24 x 110	220 - 240	2.15	0.72
12 x 95	240 - 260	2.3	0.79
14 x 88	280 - 300	3.15	0.76
10 x 90	270 - 290	2.5	0.93
12 x 64	280 - 300	4.1	1.21
10 x 70	315 - 335	3	1.04
8 x 85	330 - 350	2.5	0.93
