China Extruder Screen Wire Mesh Filter Discs/ 300 325 400 500 635 Mesh Stainless Steel Wire Mesh for sale

Extruder Screen Wire Mesh Filter Discs/ 300 325 400 500 635 Mesh Stainless Steel Wire Mesh

Price Negotiable

Price: $0.2-$3.6

MOQ: 1 piece

Delivery Time: 10-15 days after get the deposite

Brand: BM

Product Description

Extruder Screen Wire Mesh Filter Discs/ 300 325 400 500 635 Mesh Stainless Steel Wire Mesh

Extruder Screen Wire Mesh Filter Discs Description:

1.Raw Material: SUS302, 304, 316, 304L, 316L.

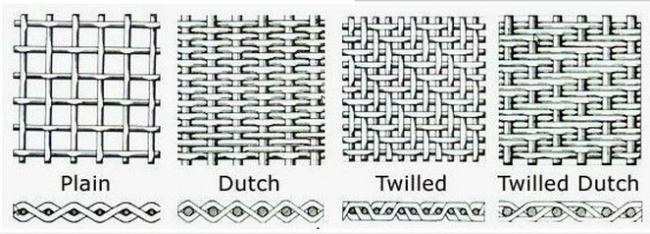

2.Typical Weaving Patterns: Plain weave, twill weave, dutch weave.

3..Specifications:

Extruder Screen Stainless steel wire mesh Filter:
Mesh/Inch	Wire diameter (mm)	Aperture (mm)	Mesh/Inch	Wire diameter (mm)	Aperture (mm)
1 mesh	5.00×5.00	20.40	90 mesh	0.11×0.11	0.172
2 mesh	1.80×1.80	10.90	100 mesh	0.10×0.10	0.154
3 mesh	1.60×1.60	6.87	120 mesh	0.08×0.08	0.132
4 mesh	1.20×1.20	5.15	140 mesh	0.07×0.07	0.111
5 mesh	1.00×1.00	4.08	150 mesh	0.065×0.065	0.104
6 mesh	0.80×0.80	3.43	160 mesh	0.065×0.065	0.094
7 mesh	0.70×0.70	2.93	165 mesh	0.050×0.050	0.104
8 mesh	0.65×0.65	2.53	180 mesh	0.053×0.053	0.088
10 mesh	0.60×0.60	1.94	200 mesh	0.050×0.050	0.077
12 mesh	0.50×0.50	1.62	200 mesh	0.040×0.040	0.087
14 mesh	0.45×0.45	1.36	225 mesh	0.040×0.040	0.113
15 mesh	0.40×0.40	1.29	250 mesh	0.040×0.040	0.062
16 mesh	0.40×0.40	1.19	250 mesh	0.035×0.035	0.067
18 mesh	0.35×0.35	1.06	270 mesh	0.035×0.035	0.059
20 mesh	0.30×0.30	0.97	290 mesh	0.020×0.020	0.067
30 mesh	0.25×0.25	0.60	300 mesh	0.035×0.035	0.050
40 mesh	0.21×0.21	0.43	325 mesh	0.030×0.030	0.048
50 mesh	0.19×0.19	0.32	325 mesh	0.028×0.028	0.050
60 mesh	0.15×0.15	0.27	350 mesh	0.025×0.025	0.048
70 mesh	0.14×0.14	0.22	400 mesh	0.025×0.025	0.039
80 mesh	0.12×0.12	0.20	500 mesh	0.025×0.025	0.026

Notes: Standard products styles are shown in the tables above, special specifications are available on request. Standard materials are stainless steel.

Extruder Screen Stianless steel dutch woven wire mesh

Mesh	Wire Dia.	Nominal Micron
12 x 64	.0230/.0165	200
24 x 110	.015/.010	80
30 x 150	.009/.007	95
30 x 160	.009/.007	90
40 x 200	.007/.0055	55
50 x 250	.0055/.0045	40

Mesh	Wire Dia.	Nominal Micron
20 x 250	.0036/.008	87
30 x 250	.0010/.0080	70
80 x 700	.0040/.0030	30-35
165 x 800	.0029/.0020	25
165 x 1200	.0028/.0016	19
165 x 1400	.0028/.0016	14
200 x 600	.0026/.0018	26
200 x 900	.0020/.0014	23
200 x 1400	.0028/.0016	10
250 x 1370	.0022/.0016	8
250 x 1400	.0022/.0016	8
250 x 1620	.0022/.0015	7-8
325 x 1480	.0014/.0012	7
325 x 1700	.0014/.0011	6
325 x 1900	.0014/.0011	5
325 x 2300	.0014/.0011	5
325 x 2800	.0014/.0011	4
375 x 2400	.0012/.0009	2-4
400 x 2800	.0011/.00078	2

Extruder Screen Stainless Steel Wire Mesh Filter is mainly used as screening and filtering materials in oil industry, chemical industry, electronics, grain, rubber and other industries.
