Reverse dutch weave woven wire mesh is different from dutch weave woven wire mesh.

Wire direction.

• Dutch weave woven wire mesh. The coarser wire in the warp direction and the finer wire in the weft direction.
• Reverse dutch woven wire mesh. The coarser wire in the weft direction and the finer wire in the warp direction.

Pls see belowing details:

Plain dutch weave woven wire mesh.

Plain reverse dutch weave woven wire mesh.

Twill dutch weave woven wire mesh.

Twill reverse dutch weave woven wire mesh

Features

• Smooth surface.
• High hardness.
• Zero aperture.
• Chemical resistance.
• Acid and alkali resistance.
• Rust and corrosion resistance.
• High tensile strength than the plain weave woven wire mesh.
• Outstanding filtration performance
•

Applications of extruder screen reverse mesh:

• Plastic & rubber reclamation.
• Extrusion of plastic profiles.
• Blown film extrusion.
• Plastic & rubber processing machinery.
• Melt filtration process.

The main characteristics of dutch woven wire mesh is that the warp and weft wire diameter and the mesh density have great contrast. So the mesh thickness and filtration precision and the service life significantly improved. The filtering precision of square mesh cannot be achieved.

Standard Specs

48x10 mesh 400 nominal micron

72x15 mesh 250 nominal micron

132x16 mesh 200 nominal micron

152x30 mesh 115 nominal micron

250x40 mesh 75 nominal micron

Material: stainless steel iron wire is common ,like ss304,316

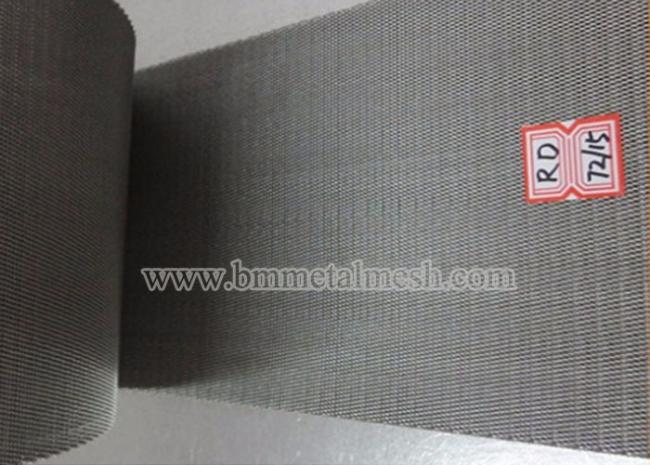

Weaving Type : Reverse Dutch
Specifications: General length of 10 meters/20meters long,
common width :97mm,120mm,127mm,130mm,150mm,etc
common mesh : 48x10 mesh, 72x15 mesh, 132x14 mesh,132x16 mesh,132x18 mesh,152x24 mesh,160x16 mesh,160x24 mesh,160x25 mesh,228x36 mesh,250x40 mesh,260x40 mesh, 325x39 mesh,400x120 mesh etc.also people call 100mesh,120mesh,130mesh,160mesh,180mesh,200mesh,etc

Uses:  widely used in such as plastic woven bags, plastic film, aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, research and transportation industry. Plastic extruder with automatic belt filter, plastic melt filter, press belt filter. Products work fine, often with the filter equipment exported to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and regions.

Here is the list of plastic extruder reverse dutch weave wire mesh
