Description

Reverse dutch weave wire mesh filter screen specially for screen changers, parts of plastic extruders. Also known as Belt or Ribbon extruder screen. Melt filter ribbons. High tensile strength ss 304 and 316 grade wire mesh screen.

The Reverse Dutch Weave makes use of two different sizes of wires in weaving. The smaller wires are warped against a large shute wire and woven as closely as possible to create a finer and tight mesh cloth. The larger wire is used to strengthen and support the whole mesh.

The Twilled Reverse Dutch Weave on the other hand makes use of the Plain Dutch and twill weaving to create a fine mesh cloth. The fine wires are tightly woven together making this ideal for filtration of gas and other liquid applications. Possessing high resistance to corrosion and high temperature, the Reverse Dutch weave wire mesh is the ideal filtering mesh, with smooth surface and resistant to deformation and hardness. It is one of the best meshes for industrial applications that require separation of liquid and slurry matter.

General Sizes:

• Width: 97mm, 120mm, 127mm, 130mm, 133mm, 150mm, 156mm, 280mm and 400mm, etc.
• Length: 10m – 30m;
• Material: SS201, SS302, SS304, SS304L, SS316, SS316L, etc.

Specification Table :

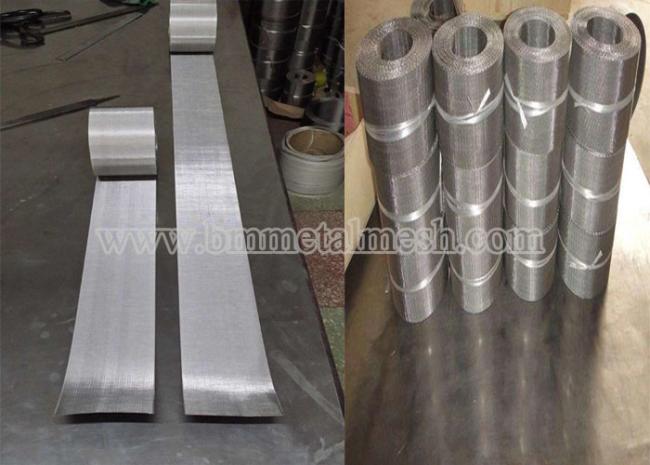

Picture shown
