Thermoplastic Injection Molding Machines For Make Plastic Labels

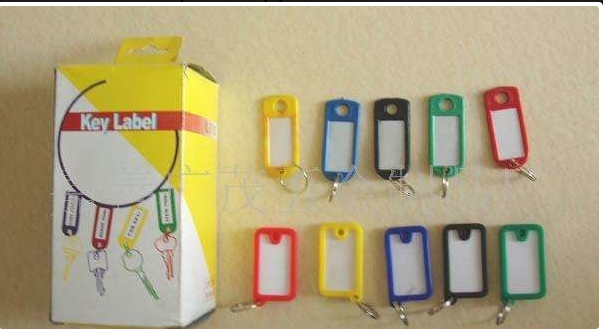

Thermoplastic Injection molding machines are used to make plastic labels
| SPECIFICATION | HJF240 | |||
| Screw Type | A | B | C | |
| Screw Diameter | Mm | 50 | 55 | 60 |
| Screw L/D Ration | L/D | 22.2 | 20 | 18.2 |
| Shot Size(Theoretical) | cm3 | 508 | 593 | 706 |
| Injection Weight(PS) | g | 462 | 534 | 642 |
| Injection Rate | g/s | 148 | 179 | 202 |
| Injection Pressure | MPa | 180 | 160.8 | 128 |
| Screw Speed | rpm | 0~180 | ||
| Clamping Force | KN | 2400 | ||
| Opening stroke | Mm | 490 | ||
| Space Between Tie Bars | mm | 530*510 | ||
| Max.Mold Height | mm | 530 | ||
| Min.Mold Height | mm | 200 | ||
| Ejector Stroke | mm | 165 | ||
| Ejector Tonnage | KN | 70 | ||
| Max.Pump Pressure | MPa | 16 | ||
| Pump Motor Power | KW | 18.5 | ||
| Heater power | KW | 11.65 | ||
| Machine Dimension(L*W*H) | M | 5.4*1.5*2 | ||
| Machine weight | T | 7 | ||
| Oil Tank Capacity | L | 340 | ||
1. New type screw driving system
Spline connection for screw and oil motor, smooth and reliable transmission, big transfer torque, easy disassembly.
2. Excellent injection performance
Double cylinder injection, entire floor-guided, reliable and stable.
3. Superior clamping system
Adopts optimized connection rod structure, faster and smoother operation.
4. New frame structure
Simple and generous appearance, machine body force reasonable and stronger.
5. Professional plasticizing system
Suitable for different types of plastic raw material with professional plasticizing and heating system, good plasticizing performance.
6. High efficient powerful servo system optional
Power system adopts high pressure gear box and servo motor, rotary encoder,pressure transducer and servo amplifier to get system closed-loop control
