Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine

Working Flow:

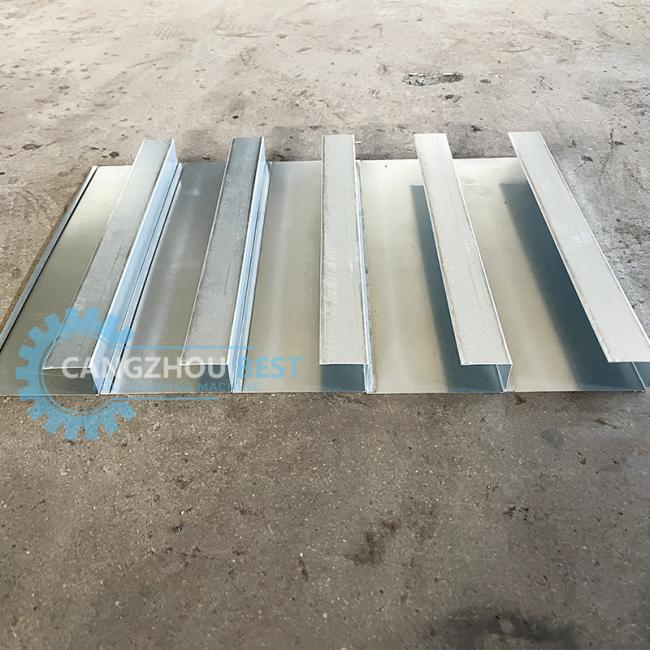

Decoiler-----feeding-----roll forming------cutting-----finished product

Machine Component:

Machine Specifications:

1. DECOILER

(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs

(5)Type:manual

2. ROLL FORMING MACHINE

(1) Material Thickness: 0.5-1.0mm PPGI and GI

(2) NO. of roller Stations:14+14 groups
(3) Material for Rollers:Cr12 steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

(5) Diameter of shaft: 60mm

(6) Frame panel : casting type

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 5.5kw

(9)Driven type: chain

(10)Speed: 8-12m/min

3. CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment

(2)Hardness for Heat Treatment:HRC58 – 62°

(3)Cut-Off Type: Mould Cutting

(4)Motor for Hydraulic Stand: 3kw

4.PLC CONTROL BOX

(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

5. HYDRAULIC PUMP STATION

(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand

Warranty

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
