Gcr15 High Steel Profile 3.0mm C Purlin Machine
Gcr15 High Steel C Purlin Roll Forming Machine , Steel Profile Roll Forming Machine

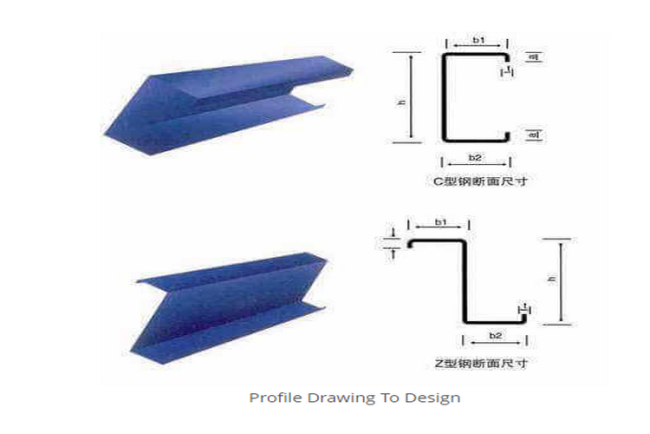

These purlins machine are manufactured by quality approved raw materials under our experienced professionals techniques. The offered purlins are extensively used in the construction of buildings and can be made in various shapes, sizes and thickness.
| Material of coil | Material Thickness | 1.5-3.0mm |
| Width | from 80mm to 300mm | |
| De-coiler | Weight | 3 ton manual decoiler |
| Forming system | Rolling Speed | 0-12 m/min |
| Roller Stations | About 18 roller stations | |
| Roller Material | Gcr15 Steel with quenching 50-55HRC | |
| Shaft Material | 45# Steel Diameter 76mm shaft | |
| Main Motor Power | 11KW | |
| Hydraulic cutting Power | 7.5KW | |
| Cutting system | Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Cutting blade | 1 set of cutting blade | |
| Electrical control system | Electric Source | 380V, 50HZ, 3phase |
| Control System | PLC with touch screen | |
| Weight | About 6 tons | |
| Way Of Drive | Chain driven |
C Purlin Technical Parameter
| Equipment name | Quantity |
| 3T manual uncoiler | 1 set |
| Roll forming machine | 1 set |
| Hydraulic cutting | 1 set |
| Hydraulic punching | 1 set |
| Hydraulic station | 1 set |
| 4 meters out tables | 1 set |
| Control box | 1 unit |
| Spare parts | 1 package |
Each part of C Purlin Machine
1.3T Manual De-coiler
Diameter: 460-520mm expansion.
Capacity: 3 Tons
Max Coil Width: 500mm
2.Leveling device
Put the raw material(steel plate) through the beach to manufacture and process
Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface.
7 rolls leveling, 3 rolls up and 4 rolls down,it can guarantee that the products are neat, parallel and everything is uniformi
3. Punching and cutting device
It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products
hydraulic station pressure: 20 MPa
Hydraulic coil:46#
Components: It contains one set of blade, one hydraulic cylinder and one cutter machine
cutting blade material:Cr12 Mov steel with high treatment
4.Control Box
(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2). Control panel: Button-type switch and touch screen
(3) The language in the touch screen: English and Chinese
(4) Length & quantity measurement automatically.
(5) Length & quantity controlled by PLC.
(6) Length inaccuracy can be amended easily.
