Thermal Radiation Melt Drop Tester with 30KW/m2 Heat Radiation Stainless Steel Test Cabinet Compliant with NF P92-501 Standard
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15-20 work days
Brand:
YUYANG
Product Description

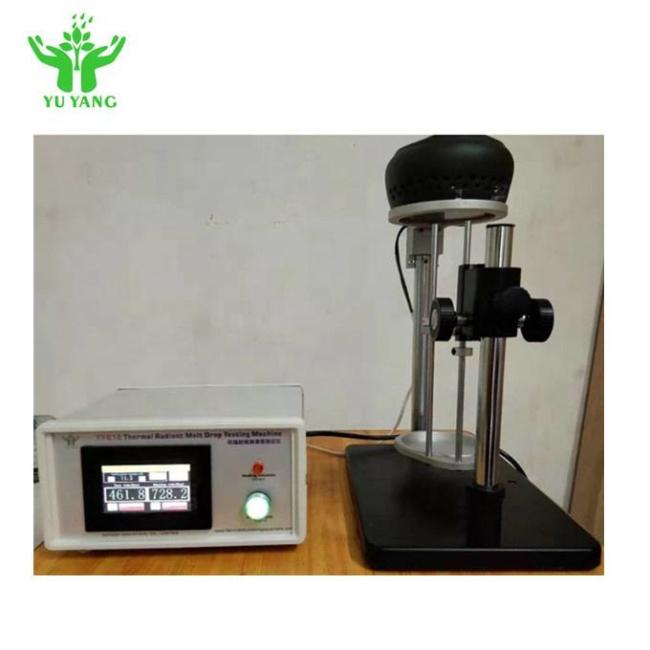

ECE R118 Thermal Radiation Melt Drop Tester
The Thermal Radiation Melt Drop Tester evaluates the melting behavior and flammability characteristics of materials exceeding 5mm thickness. This advanced testing equipment applies 30KW/m² heat radiation to assess flame spread, volatile gas combustion, and heat release data for rigid and elastic materials.
Compliance Standards
NF P92-505 Dripping test with electrical radiator
EU 95/28/EC
ECE R118 Annex 7 Test to determine the melting behavior of materials
EU 95/28/EC
ECE R118 Annex 7 Test to determine the melting behavior of materials
Applications
Building Materials • Rail Vehicle Components • Automotive Interior Materials
Technical Features
- Stainless steel test cabinet with flame-resistant inner walls and transparent viewing window
- Stainless steel tubular inlet device with filtration system for indoor sources
- 45° test stand with stainless steel indicators for flame spread distance calculation
- Heat radiation device providing 30KW/m² heat flux with adjustable output
- Power controller with display panel showing operating power values
- Automatic ignition system for combustible gases with imported needle valve control
- Upper and lower burner flame height control with measurement capability
- Persistent small flame device for convenient burner ignition
- Quarter-rotation stopper device for gas burner control
- Dual thermocouple temperature monitoring with real-time display
- Advanced test software for automatic flame and combustion heat index analysis
- Comprehensive data export and reporting capabilities with user-friendly interface
- Measurement parameters: raw flame index, flame average height index, longest flame index, combustion heat index
Technical Specifications
| Power Supply | Single phase 220V, 50Hz |
| Base Dimensions | 425 × 300mm |
| Maximum Height | 680mm |
| Weight | 25kg |
