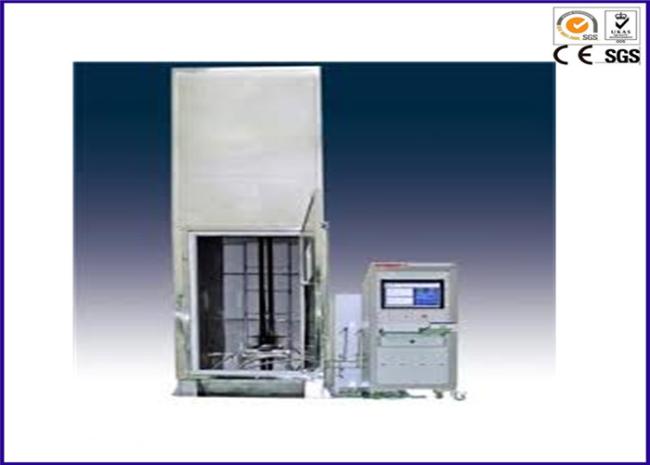

High Precision Bunched Cable and Wire Vertical Flame Spread Flammability Testing Equipment

Description:

This product is included in the IEC 60332-3-10, KS C IEC 60332-3-21,22,23,24,25(Category A-D) standard series. This equipment assesses the flame spread of an electric wire or cable, vertically positioned using an ignition source stated in the standard while continually supplying a fixed air flux.
Also if the standard type burner is regulated 20 degrees the test applicable to IEEE383(IEEE1202) can be carried out.

Standard:

UL1685, IEC 60332-3-10, EN 50399, GB/T 18380.31

Specification:

1. Test Chamber Material : Stainless Steel

2. Test Chamber Dimension : (W) 1,000 x (D) 2,000 x (H) 4,000 mm

3. Test Chamber Observation Window : Pyrex Glass(5mm thick)

4. Test Chamber Lummy Board : 10mm thick

5. Test Ladder Standard Ladder Dimension : (W) 500 x (H) 3,500 mm

6. Test Ladder Wide Ladder Dimension : (W) 800 x (H) 3,500 mm

7. Ribbon type Propane Gas Burner

8. Heat Source Material : Stainless Steel

9. Heat Source Dimension of Burner Face : (L) 257 x (W) 4.5 mm

10. Space of Hole : 3.2mm from one another

11. Mixing System : Ventury Type Mixer

12. Control Rack Dimension : (W) 730 X (D) 650 X (H) 1,400/ 19" Rack

Test result:

1. Flameout Time

2. Chamber Average Temperature

3. Max. Chamber Temperature

4. Min. Chamber Temperature

5. Burner Average Temperature

6. Max. Burner Temperature

7. Min. Burner Temperature

8. Average Inlet Flow(L/Min)

9. Average Outlet Flow(m/sec)

10. Vi Calibration

11. Average Heat Energy

12. Total Gas Flowrate

13. Add photo feature of carbonization area
