ASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm I.D 6mm
ASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm,I.D:6mm
Detailed Descriptions:

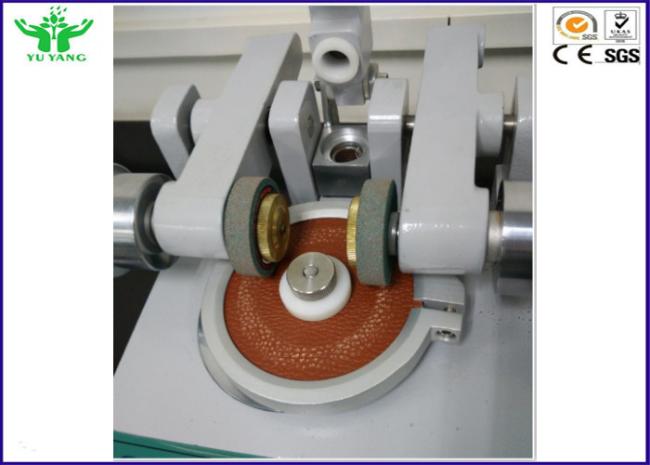

This machine Widely Used to testing wear resistant material,fabric, rubber,coating, plywood,paper, leather...etc. According to the different material with different grinding wheel wear test, Use standard knife cutting specimens, make specimen abraded by a pair of grinding wheels under the specified load.check before and after the abrasion of specimen weight difference to assess physical results.
Corresponding standard :
DIN-53754,53799,53109,52347,TAPPI-T476,ASTM-D1044,D3884,ISO-5470;ISO9352-89

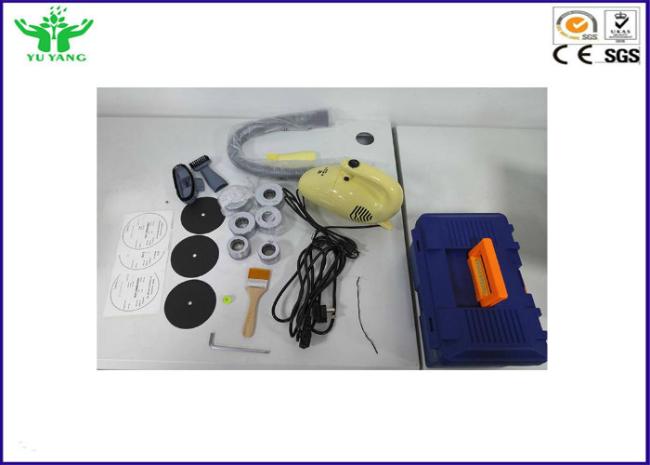

Default Configures:
Main unit 1pc
Located plate for sample settle 1pc
Mold for samples 1pc
Knife for samples 1pc
specifications:
| Standard | DIN-53754,53799,53109,52374,ASTM-D1044,D3884,ISO-5470 |
| Specimen | outside diameter 108mm, inside diameter 8mm, 3mm(D) |
| Grinding wheel | diamter2'' (max.45mm)1/2''(W) |
| Space between grinding wheels | 63.5mm |
| Grinding wheel and plate's space | 37~38mm |
| Rotating speed | 60/72 rpm |
| Load | 250,500,1000g |

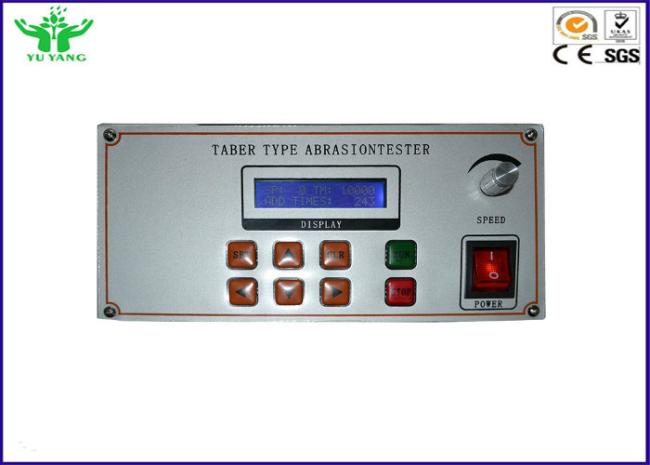

| Counter | LCD,0~999,999 |
| Distance between specimen and hose | 3mm |
| Dimension (W*D*H) | 53*32*31cm + vacuum cleaner |
| Weight | 18kg |
| Power | AC 220V 10A |
