225 Sole Bending / Outsole Flexing Footwear Testing Equipment 90 Cycles/min
225 Sole bending /Outsole Flexing Footwear testing Equipment 90cycles/min
Detailed Descriptions:

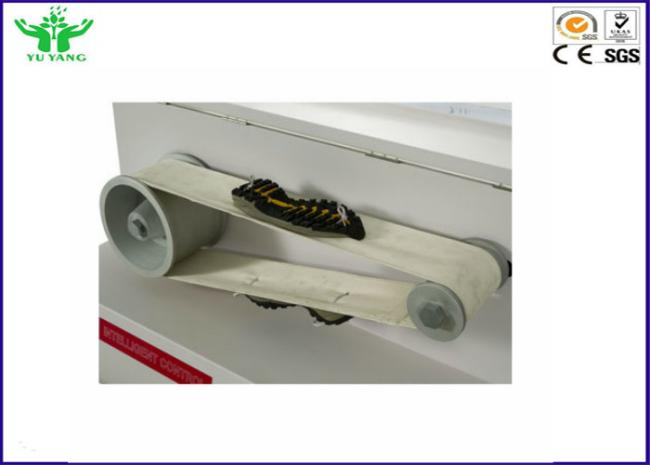

Used to test shoe sole material on the transmission of cloth belt around the roller do the cycle test, to observe the degree of resistance to bending. Sole bending testing machine is for the flexing test of the non-leather outsole. Sew up or stick the non-Leather outsole, put it to the turning wheel. Turn on the wheel, the outsole will be flexed. After a few times, check the damage and breakage. The small wheel is motivated by the bigger wheel. There are 3 types of the small wheel with different diameter for change as to get different flexing data for comparison
Main Parameters:
| Model | YYX-011 |
| Cavans tape size | Length: 1930 +/-50mm |
| Vacans tape speed | 90 cycles / min |
| Large central wheel diameter | 225 |
| Small central diameter | 60mm, 90mm, 120mm |
| Simultaneously test | Max. 6 soles |
| Counter | LCD, 0~999, 999 |
| Motor | AC, 1/2hp Frequency conversion motor |
| Machine Size | 129Lx75Wx70Hcm |
| Weight | 160kgs |
| Power | AC220V, 3A |
| Design criteria | SATRA PM133 |
Packaging Details
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
