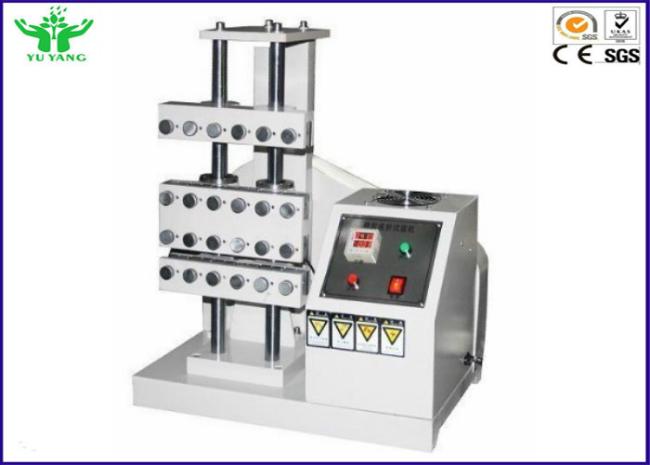

90° Shoes Sides Winding Resistance / Footwear Uppers Bending Tester 100 ±3r/min
90° Shoes Sides Winding resistance /Footwear uppers bending tester 100 ±3r/min
Detailed Descriptions:
This machine is suitable for the rubber, Leather, PU Leather, Sole materials bending test, Use the material make into norms specimens, After the bending fatigue of continuous. Observe crack degree to understand or compare their durability.
Specifications:
1. Specimen: (L)6"*(W)1"*(D):(L)6"*(W)1"*(D)
2. Sole: 0.25"
3. Rubber: 0.5"0.125"
4. Clamp: 6 group, can be test 12pcs
5. Bending angle: 90°
6. Test speed: 100 ±3r/min
7. Counter:LCD 0～999,999
8. Dimension: (W*D*H):59*60*32cm
9. Weight: 15kg
10. Power: 1∮,AC220V,3A
11. Standard: ATSM-D1052,ISO5423,4643
Specimen: |
(L)6"*(W)1"*(D):(L)6"*(W)1"*(D) |
| Sole: | 0.25" |
| Rubber: | 0.5"0.125" |
| Clamp: | 6 group, can be test 12pcs |
| Bending angle: | 90° |
| Test speed: | 100 ±3r/min |
| Counter: | LCD 0～999,999 |
| Dimension: | (W*D*H):59*60*32cm |
| Weight: | 15kg |
| Power: | 1∮,AC220V,3A |
| Standard: | ATSM-D1052,ISO5423,4643 |
